(256) - FOAM MARKER 60/90 BOOM GROUP

Запчасти Case IH SPX4260 (256) - FOAM MARKER 60/90 BOOM GROUP (78) - SPRAYING

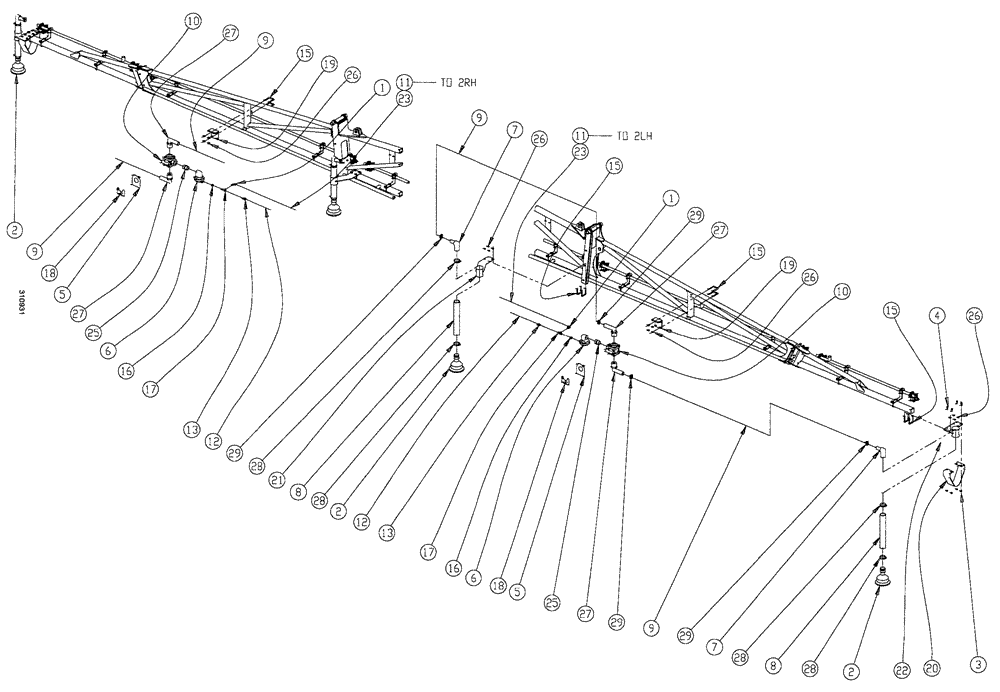

Схема запчастей Case IH SPX4260 - (256) - FOAM MARKER 60/90 BOOM GROUP (78) - SPRAYING
5
27
23
18
15
10
22
29
21
12
15
25
9
15
6
5
6
17
27
29
20
26
12
7
28
2
26
1
13
11
26
16
9
18
17
4
29
8
27
7
8
29
9
13
28
9
3
19
26
16
2
19
25
23
27
28
2
10
1
28
15
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

2

BN2403252

BELL

Foam Marker

4шт.

3

BN304419

NUT

M10-1.5, NLN, 10.9

8шт.

4

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

8шт.

5

BN320997

BRACKET

Decal Mount (SS)

2шт.

6

BN307636

CHAMBER

Foam Mixing

2шт.

7

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

4шт.

8

BN310942

HOSE,1.25" ID x 10.00'

Foamer

4шт.

9

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

10

BN311011

VALVE,1-1/4" NPT Female; Full Port

3 way, 1 1/4 SL

2шт.

11

BN310941

HOSE,2.00" ID x 16.00"

Drop

4шт.

12

BN311113

FLEXIBLE HOSE,45.00"

Synflex

2шт.

13

BN312038

VENTURI

assembly, head, foam

2шт.

15

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

12шт.

16

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

2шт.

17

BN313189

TEE

4-4-4, NPT, SS

2шт.

18

BN313190

DECAL

foamer flow

2шт.

19

BN313191

MOUNTING PARTS

foamer ball valve

2шт.

20

BN313335

SKID/SHOE

Boom breakaway

2шт.

21

BN313193

MOUNTING PARTS

inner, foamtube

2шт.

22

BN313416

MOUNTING PARTS

outer, foamtube

2шт.

23

BN314002

LOOM

black, 5/8 x 45'

2шт.

25

BN313211

NIPPLE

Hex, 1-1/4"

2шт.

26

BN50756

NUT

3/8-16, NLN, G5

24шт.

27

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

4шт.

28

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

8шт.

29

BN76084

HOSE CLAMP

Adj. #24, SS

8шт.
