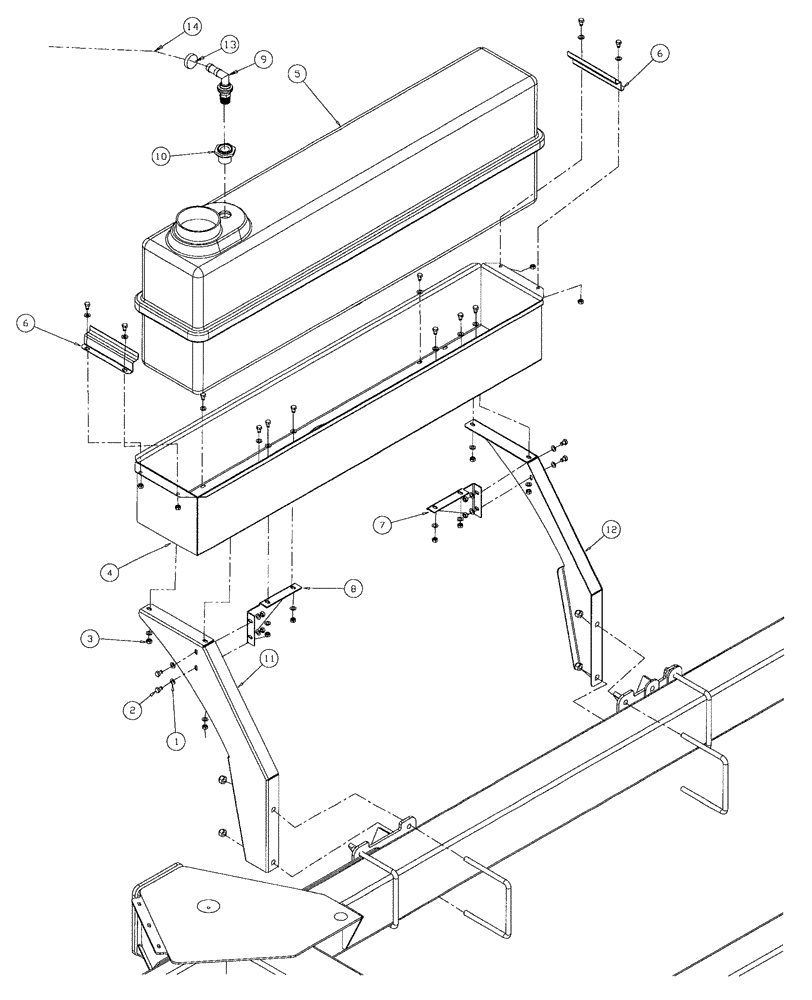

Запчасти Case IH SPX4260 (250) - RINSE TANK GROUP (78) - SPRAYING

1

BN300499

WASHER,M10, 10.9

32шт.

2

BN301044

BOLT,Hex, M10 x 20, 10.9, Full Thd

18шт.

3

BN304419

NUT

M10-1.5, NLN, 10.9

18шт.

4

BN305983

TANK

cradle W/M

1шт.

5

BN309568

TANK

60 gallon poly

1шт.

BN314276

COVER

For Ref 5, Not Illustrated

1шт.

6

BN310228

SUPPORT

TANK, holddown

2шт.

7

BN306221

SUPPORT

RH

1шт.

8

BN306222

SUPPORT

LH

1шт.

9

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

10

BN73680

FITTING

bulkhead 1" poly

1шт.

11

BN310229

SUPPORT

tank, LH

1шт.

12

BN310230

SUPPORT

tank, RH

1шт.

13

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

14

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

15

BN73733

FITTING

1 1/2" Bulkhead

1шт.

16

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

17

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

18

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

1шт.

19

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

3шт.

20

BN303199

CLAMP,2" Flange

2" Standard Flange

7шт.

21

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

7шт.

22

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2 FL x 1 FL

1шт.

23

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1.25 Male

2шт.

24

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

25

BN304318

COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly

2" flange, 90

2шт.

26

BN306904

FITTING,1" Flange x 3/4" Hose Barb

STR 1" flange x .75 HB

1шт.

27

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

28

BN303203

CLAMP,1" Flange

1 FL

1шт.

29

BN76093

HOSE CLAMP

#28, SS

6шт.

30

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

31

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

32

BN69411

VALVE

support 1.5" x 6" ANG

1шт.

33

BN312183

COUPLING,1-1/2" 90 Degree Male Adapter-1-1/2" Male Thread

1.5 NPT x M CAM

1шт.

34

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

35

BN75978

HOSE CLAMP

SS #12 ADJ HS .56 - 1.25

2шт.

36

BN312843

HOSE,1.50" ID x 5.00"

Kaniflex

1шт.

37

BN312844

HOSE,1.50" ID x 58.00"

Kaniflex

1шт.

38

BN312845

HOSE,1.50" ID x 39.00"

Keniflex

1шт.

39

BN312846

HOSE

1/2 x 50

1шт.

40

BN22226

DUST CAP,1-1/2" Cap

Cam Lock 1 1/2"

1шт.

41

BN53817

DRAIN VALVE

Plastic, 1/2" NPT

1шт.
