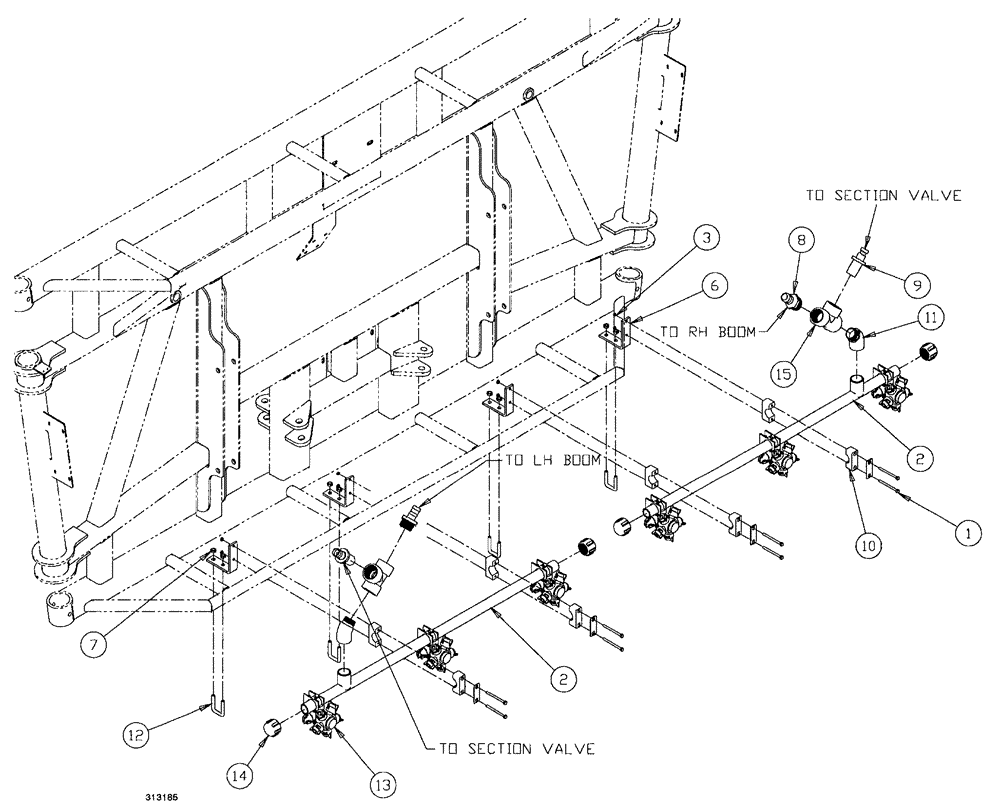

Запчасти Case IH SPX4260 (244) - 90 6 BOOM SHUTOFF 20" NOZZLE SPACING (CENTER) (78) - SPRAYING

1

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

8шт.

2

BN313175

TUBE

20" SP x 3

2шт.

3

BN306618

NUT

M6-1 ,WLN, 10.9

8шт.

6

BN313184

BOOM

mount, center 1"

4шт.

7

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

8

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

9

BN313199

ADAPTER,1" Male Adapter-1-1/4" Male Thread

1 1/4" male CAM

2шт.

10

BN67054

CLAMP

1.315" OD

4шт.

11

BN313198

ELBOW

1 1/4" NPT ST 45°

2шт.

12

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

13

BN313280

NOZZLE INJECTION

5-way wet 1" pipe

6шт.

¤

BN313736

NOZZLE INJECTION

3-way wet 1" pipe

6шт.

Indicates an "or" situation

1шт.

¤

BN313279

NOZZLE INJECTION

1 -way wet 1" pipe

6шт.

Indicates an "or" situation

1шт.

14

BN73606

CAP

1" NPT, Poly Pipe

4шт.

15

BN73662

TEE

1-1/4", Poly

2шт.
