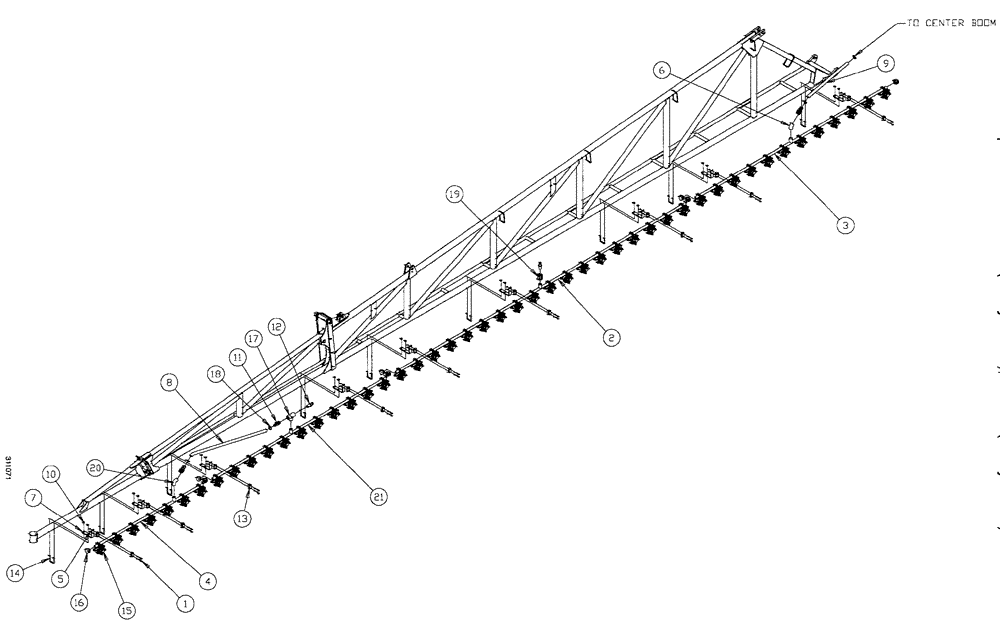

Запчасти Case IH SPX4260 (242) - 90 6 BOOM SHUTOFF 10" NOZZLE SPACING (RH/LH) (78) - SPRAYING

1

BN301532

BOLT

M6-1 x 55, HH, SS

18шт.

2

BN302605

BOOM

wet 174"

1шт.

3

BN302918

BOOM

wet 114", 90 FT

1шт.

4

BN300102

BOOM

wet 64"

1шт.

5

BN306618

NUT

M6-1, WLN, 10.9

18шт.

6

BN307203

ELBOW,1" 45 Degree Poly Street Elbow

45° x 1" females

1шт.

7

BN309962

SUPPORT

strap

9шт.

8

BN311045

HOSE,1.00" ID x 92.00"

EPDM

1шт.

9

BN311046

HOSE,1.00" ID x 115.00"

EPDM

1шт.

10

BN50062

LOCK NUT,3/8"-16, Stainless Steel

18шт.

11

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

12

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

13

BN65324

CLAMP

1" OD, Poly

9шт.

14

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

9шт.

15

BN69476

NOZZLE INJECTION

5-way wet 3/4" SHA

48шт.

¤

BN313110

NOZZLE INJECTION

1-way wet 3/4" PIP

48шт.

Indicates an "or" situation

1шт.

16

BN73606

CAP

1" NPT, Poly Pipe

8шт.

17

BN73629

TEE

1" Poly Pipe

1шт.

18

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

19

BN66968

COUPLING

1" Poly

1шт.

20

BN73742

ELBOW

90º x 1 Poly

1шт.

21

BN302606

BOOM

wet 104"

1шт.
