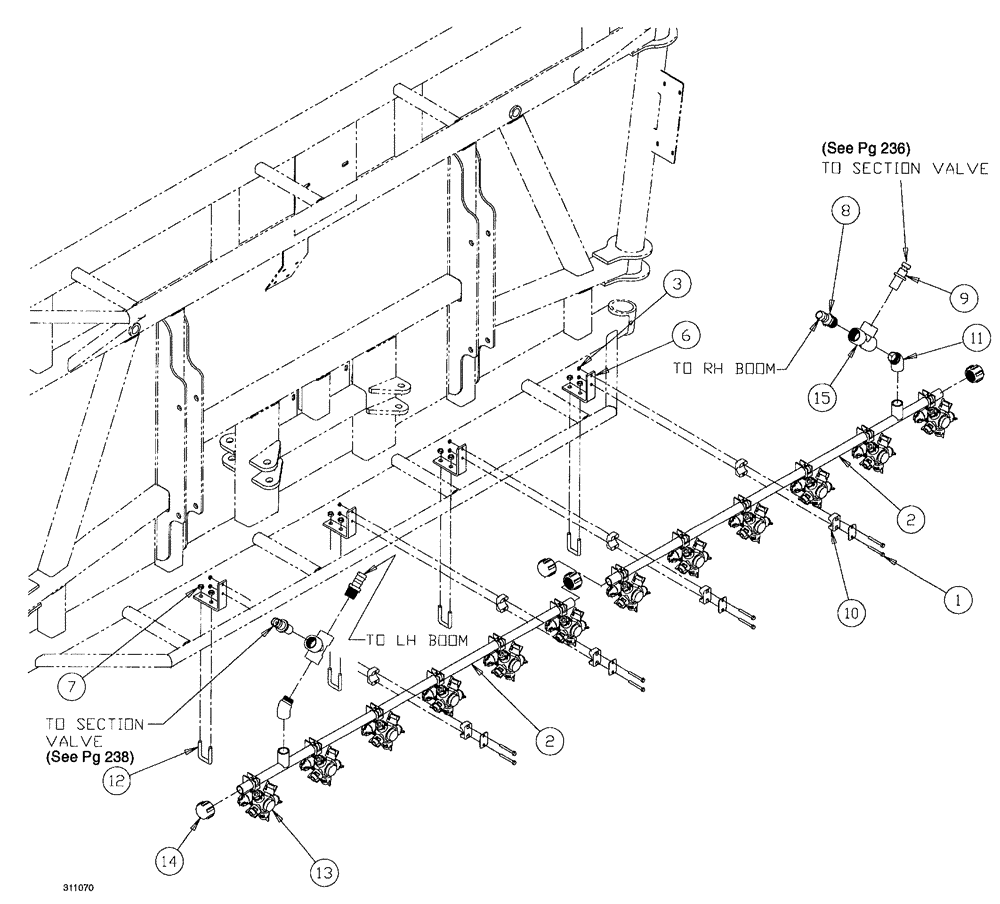

Запчасти Case IH SPX4260 (240) - 90 6 BOOM SHUTOFF 10" NOZZLE SPACING (CENTER) (78) - SPRAYING

1

BN301532

BOLT

M6-1 x 55, HH, SS

8шт.

2

BN302719

BOOM

wet 54"

2шт.

3

BN306618

NUT

M6-1, WLN, 10.9

8шт.

6

BN309908

SUPPORT

center boom

4шт.

7

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

8

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

10

BN65324

CLAMP

1" OD, Poly

4шт.

11

BN66969

ELBOW

street 45 x 1" poly

2шт.

12

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

13

BN69476

NOZZLE INJECTION

5-way wet 3/4" SHA

12шт.

¤

BN313110

NOZZLE INJECTION

1-way wet 3/4" PIP

12шт.

Indicates an "or" situation

1шт.

14

BN73606

CAP

1" NPT, Poly Pipe

4шт.

15

BN73629

TEE

1" Poly Pipe

2шт.
