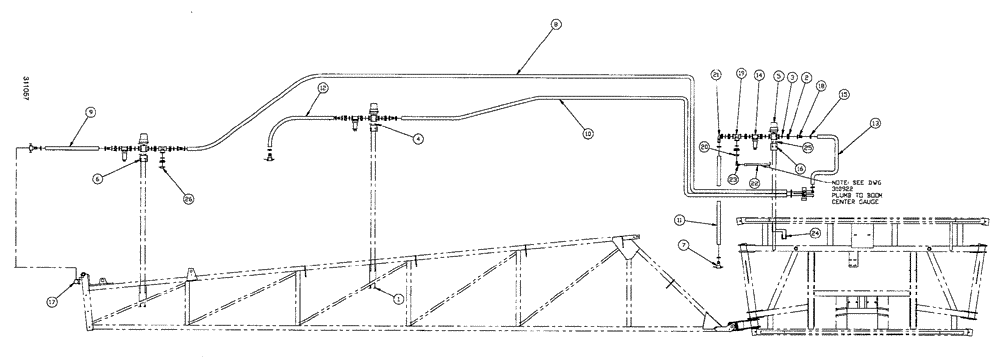

Запчасти Case IH SPX4260 (238) - 90 6 BOOM SHUTOFF (LH) (78) - SPRAYING

1

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

2

BN303203

CLAMP,1" Flange

1 FL

13шт.

3

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

13шт.

4

BN304417

NUT

M6-1, NLN, 10.9

4шт.

5

BN305049

VALVE,1" Electric Valve

electric 2 way 1"

3шт.

6

BN306796

BRACKET

valve mount

2шт.

7

BN53668

COUPLING

1" Female, HS SHK

3шт.

8

BN311039

HOSE

1" EPDM x 30'

1шт.

9

BN311042

HOSE

1" EPDM x 82"

1шт.

10

BN311043

HOSE,1.00" ID x 21.00'

EPDM

1шт.

11

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

12

BN53756

HOSE,42.00"

1шт.

13

BN66858

HOSE

1" EPDM x 31.00"

1шт.

14

BN311711

STRAINER ASSY.

1" -50 mesh flange

3шт.

15

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

16

BN313026

MOUNTING PARTS

spray valve

1шт.

17

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

18

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1" FLNG x 1" barb

5шт.

19

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

2шт.

20

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

21

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

1шт.

22

BN313160

HOSE

3/8" ID x 492"

1шт.

23

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

24

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

1шт.

25

BN50061

LOCK NUT

3/8"-16, G5

2шт.

26

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.
