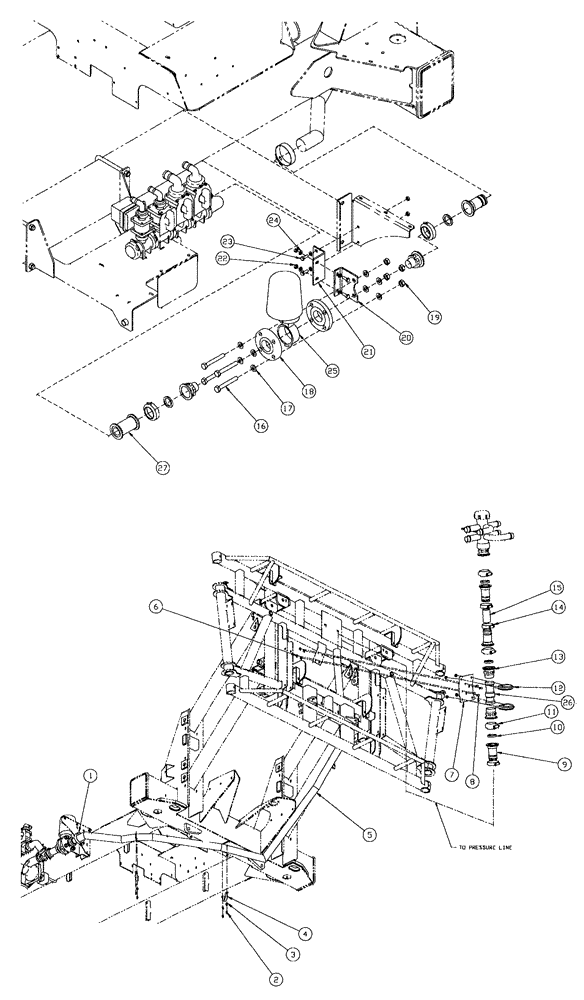

Запчасти Case IH SPX4260 (232) - DICKEY-JOHN® PLUMBING ASSEMBLY (78) - SPRAYING

1

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

2

86528579

NUT,M8 x 1.25

4шт.

3

BN300497

WASHER,M8, 10.9

4шт.

4

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

2шт.

5

BN313088

HOSE,2.00" ID x 13.50'

EPDM

1шт.

7

BN308002

MOUNTING PARTS

meter

1шт.

8

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

6шт.

9

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

4шт.

10

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

5шт.

11

BN303199

CLAMP,2" Flange

2" Standard Flange

5шт.

12

BN307786

CLAMP

U-bolt W/INRT, 3.5 ID

2шт.

13

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

4шт.

14

BN76056

HOSE CLAMP

#36

2шт.

15

BN313423

HOSE,2.00" ID x 16.00"

EPDM

1шт.

16

43281

BOLT,Hex, M16 x 2 x 120mm, Cl 10.9

4шт.

17

BN300501

WASHER

M16, FW, 10.9

8шт.

18

BN8195018

FLANGE

2" pipe (4 bolt-1

2шт.

19

832-46416

NUT,M16 x 2, Cl 8

4шт.

20

BN313893

PLATE

valve mount

1шт.

21

BN313894

MOUNTING PARTS

plate valve

1шт.

22

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

23

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

24

BN300499

WASHER,M10, 10.9

6шт.

25

BN2400393-005

VALVE

servo 2"

1шт.

26

BN306098

METER

flow- RFM 100

1шт.

27

442255A1

COUPLING,2" x 2" Flange x 41/2"Long

poly 2 flange manifold

1шт.
