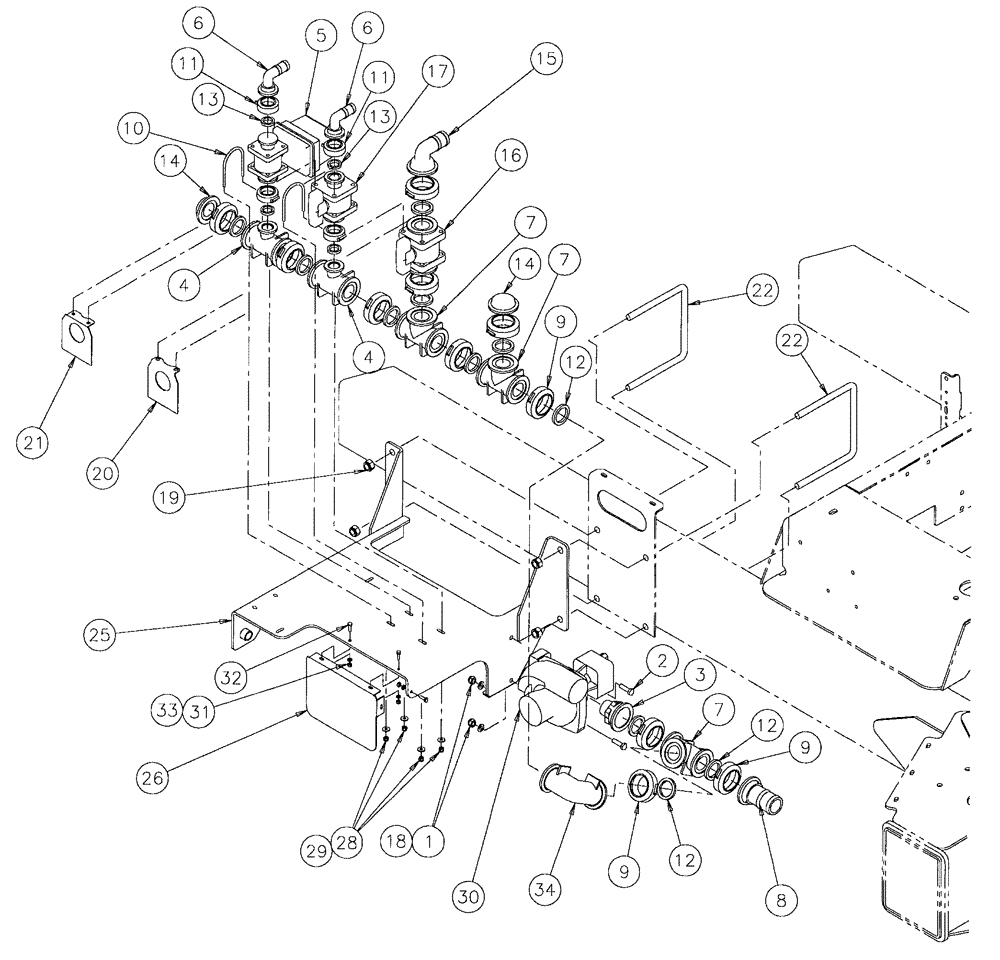

Запчасти Case IH SPX4260 (228) - PRESSURE ASSEMBLY (78) - SPRAYING
№
Артикул
Название
Примечание
Количество
1
BN300499
WASHER,M10, 10.9
2шт.
2
86624978
BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd
2шт.
3
BN303190
FITTING,2" Flange x 1-1/2" NPT, Poly
2" Flange x 1-1/2" NPT, Poly
1шт.
4
BN303191
TEE,2" Flange x 2" Flange x 1" Flange, Poly
2FL x 1FL
2шт.
5
BN303193
VALVE,STD Port Regulating 1”, 4 Second, 2 Wire ARBBCWDG
electric 2 way 1"
1шт.
6
435587A1
FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow
1" Flange x 1" Hose Barb, Poly
2шт.
7
405779A1
TEE,2" Port Flanged Tee
Poly 2" Flange Manifold
3шт.
8
405780A1
FITTING,2" Flange x 2" Hose Barb
2" Flange x 2" Hose Barb, Poly
1шт.
9
BN303199
CLAMP,2" Flange
2" Standard Flange
11шт.
10
BN303201
U-BOLT
BOLT "U" 1/4 x 2.38R x 3.75
2шт.
11
BN303203
CLAMP,1" Flange
1FL
4шт.
12
BN303204
GASKET,1-1/2" EPDM Gasket
2" Flange, EPDM
11шт.
13
408350A1
MANIFOLD GASKET,1" EPDM Manifold Gasket
1" x 7/32" thick
4шт.
14
86984085
PLUG,2" Flange Plug
2" Manifold
2шт.
15
FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow
2" Flange x 1 1/2" Hose Barb, Poly
1шт.
16
BN304328
VALVE,2" FP Valve w/C-Flng & T Handle
ball, 2" FL, W/T HNDL
1шт.
17
BN304329
VALVE,1"FP Valve w/C-Flng & T Handle
Ball, 1" FL, W/T-Handle
1шт.
18
BN304419
NUT
M10-1.5, NLN, 10.9
2шт.
19
832-46416
NUT,M16 x 2, Cl 8
4шт.
20
BN320997
BRACKET
Decal Mount (SS)
1шт.
21
BN320998
PLATE
Decal Mount (SS)
1шт.
22
BN312186
U-BOLT
BOLT "U" 16 mm x 8.125 x 8.06
2шт.
25
BN306591
MOUNTING PARTS
pump station
1шт.
26
BN320999
PLATE
Decal Mount (SS)
1шт.
28
87529236
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
0.281 X 0.625 X 0.065 HTS DOR HDN
4шт.
29
BN55359
LOCK NUT,1/4"-20, SS
4шт.
30
NSS
NOT SOLD SEPARAT
PUMP HYPRO HV
1шт.
See Fig. 248
1шт.
31
BN300496
WASHER
M6, Flat, 10.9
3шт.
33
BN304417
NUT
M6-1, NLN, 10.9
3шт.
34
BN304318
COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly
2" flange, 90
1шт.
Выбрано товаров: 32
