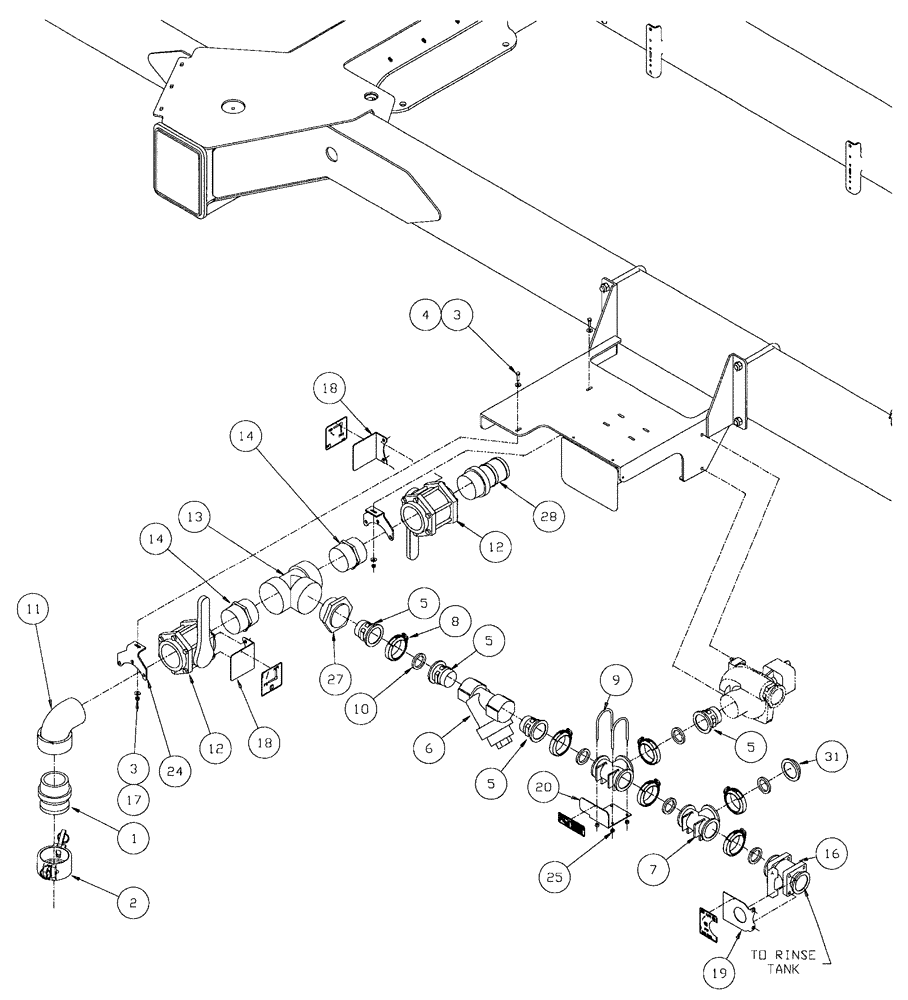

Запчасти Case IH SPX4260 (226) - SUCTION ASSEMBLY (78) - SPRAYING

1

BN2393306

COUPLING

F 3" poly

1шт.

2

BN2393384

CAP

Coupler 3" Dust Poly

1шт.

3

BN300496

WASHER

M6, Flat, 10.9

4шт.

4

86639038

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

5

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

4шт.

6

BN303187

FILTER STRAINER,2" LSQ Poly Strainer

line

1шт.

7

405779A1

TEE,2" Port Flanged Tee

Poly 2" Flange Manifold

2шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

6шт.

9

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

10

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

6шт.

11

BN303207

ELBOW

street 3" 90

1шт.

12

BN303208

VALVE

3" 2 way

2шт.

13

BN303209

TEE

3" poly

1шт.

14

BN73788

NIPPLE, LUBE

NIPPLE 3" poly pipe short

2шт.

15

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

16

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

ball, 2" FL, W/T HNDL

1шт.

17

BN304417

NUT

M6-1, NLN, 10.9

2шт.

18

BN305452

PLATE

decal mount

2шт.

19

BN320997

BRACKET

Decal Mount (SS)

1шт.

20

BN305462

BRACKET

T- valve

1шт.

24

BN306595

BRACKET

valve ball

2шт.

25

BN55359

LOCK NUT,1/4"-20, SS

4шт.

27

BN85677

REDUCER

bushing, 3 x 2 poly

1шт.

28

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

31

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.
