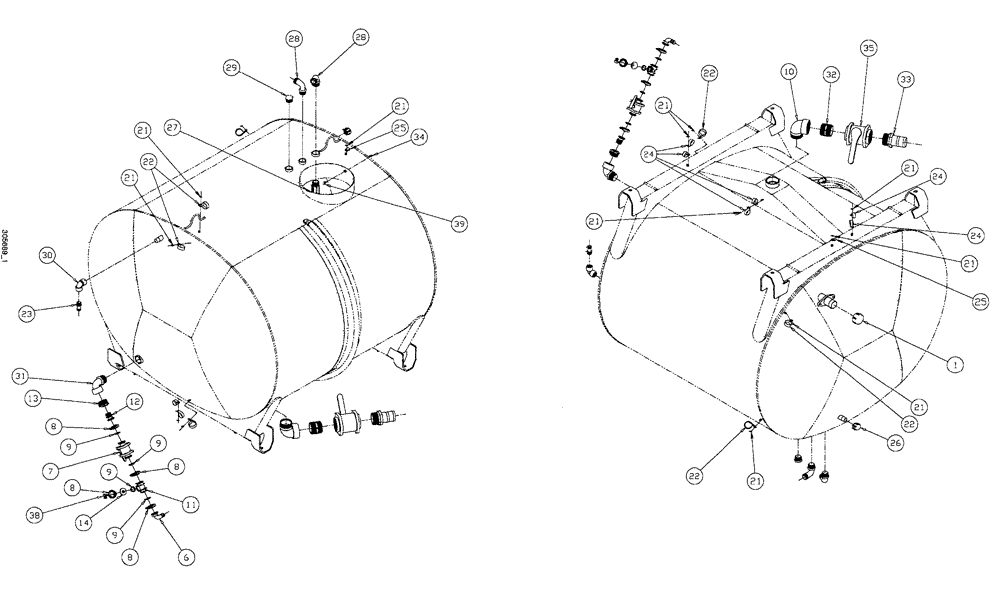

Запчасти Case IH SPX4260 (222) - TANK PLUMBING (78) - SPRAYING

1

BN2293320

CAP

2" Poly

1шт.

2

BN76094

HOSE CLAMP

SS #M4

2шт.

3

BN2293386

CLAMP

hose H28 SS

3шт.

4

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

5

BN2403395

CLAMP

T-Bolt Band 3.56"

2шт.

6

435587A1

FITTING,1" Flange x 1" 90 Degree Hose Barb Elbow

1" Flange x 1" Hose Barb, Poly

1шт.

7

BN303195

VALVE,1" Flange x 1" Flange

1 FL 2 way

1шт.

8

BN303203

CLAMP,1" Flange

1 FL

4шт.

9

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

10

BN303207

ELBOW

street 3" 90

1шт.

11

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

12

BN306903

MANIFOLD,1" Flange x 1" Male NPT, Poly

STR 1" x 1" male

1шт.

13

BN307007

REDUCER

bushing, 2" x 1"

1шт.

14

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

15

BN310622

HOSE

Tank - sump

1шт.

16

BN310623

HOSE

tank - sparge

1шт.

17

BN310624

HOSE

tank - rinse

1шт.

18

BN310625

HOSE

tank - fill

1шт.

19

BN310627

HOSE

tank - top middle

1шт.

20

BN310629

HOSE

tank - top rear

1шт.

21

86528579

NUT,M8 x 1.25

10шт.

22

BN52035

CLAMP

2" Dia., Vinyl Coated

4шт.

23

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

24

BN570018

CLAMP

vinyl coated 1-7/16

6шт.

25

BN570022

CLAMP

vinyl coated 1/2"

2шт.

26

BN73606

CAP

1" NPT, Poly Pipe

1шт.

27

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

NIPPLE 1-1/2" x 6" Poly

1шт.

28

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

29

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

30

BN73742

ELBOW

90º x 1 Poly

1шт.

31

BN73785

ELBOW

90º Street 2" Poly

1шт.

32

BN73788

NIPPLE, LUBE

NIPPLE 3" poly pipe short

1шт.

33

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

34

BN53433

FITTING

FT, HB, 1/4" NPT x 1/4" HS, STL

1шт.

35

BN303208

VALVE

3" 2 way

1шт.

36

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

37

BN312954

HOSE

3/8" ID EPDM x 120"

1шт.

38

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

39

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

40

BN51142

CABLE TIE

CABLE STRAP tie--.12-1.25 BUNDL

6шт.
