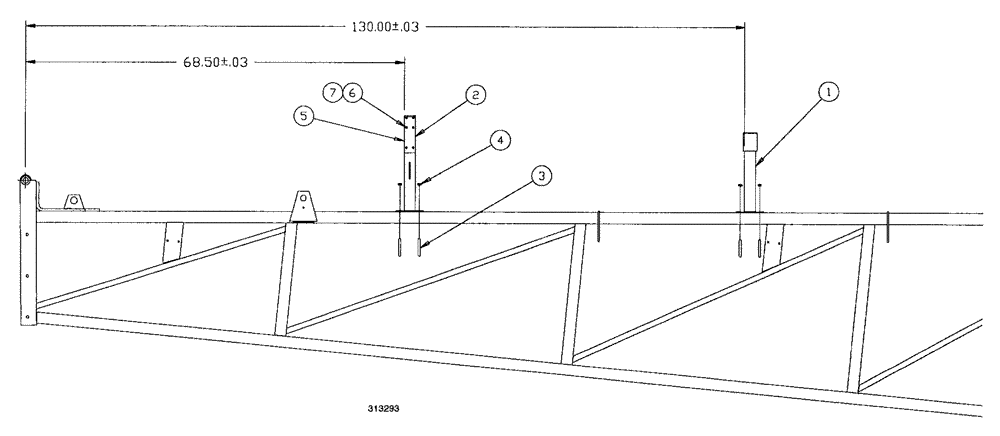

Запчасти Case IH SPX4260 (217) - OUTER CRADLE ASSEMBLY (78) - SPRAYING

1

BN326071

CRADLE

Breakaway Boom

2шт.

2

BN309616

BOOM

boom

2шт.

3

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

8шт.

4

BN50061

LOCK NUT

3/8"-16, G5

16шт.

5

BN8191734

CRADLE

polyethylene, tip

2шт.

6

BN55359

LOCK NUT,1/4"-20, SS

24шт.

7

BN1912839C

BOLT

FLH. SOC., 1/4"-20 x 1"

24шт.
