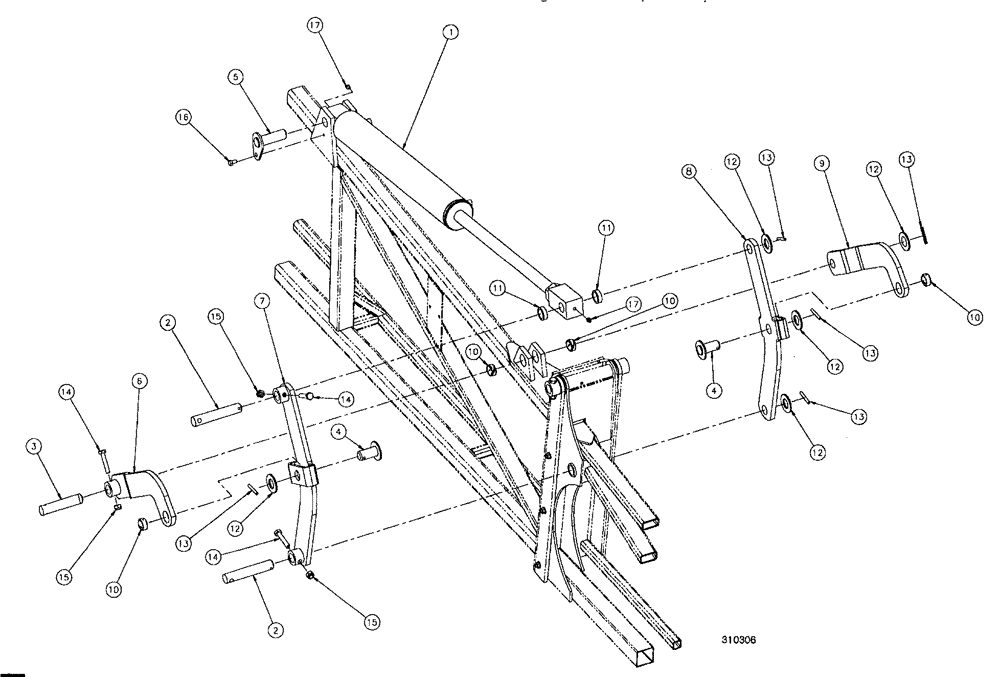

Запчасти Case IH SPX4260 (216) - HINGE ASSEMBLY (78) - SPRAYING

1

CYL HYD 2 x 20 BOOM FOLD (See Figure 202)

1шт.

2

BN307218

PIN,25.4mm OD x 143mm L

1 OD x 5.63 ETD150

2шт.

3

BN307217

PIN,25.4mm OD x 120.65mm L

1 OD x 4.63 ETD 150

1шт.

4

BN310118

PIN

weldment

2шт.

5

BN307223

PIN,25.4mm OD x 85.85mm L

cylinder

1шт.

6

BN305624

LINKAGE

bar

1шт.

7

BN305623

LINKAGE

bar

1шт.

8

BN305622

LINKAGE

bar

1шт.

9

BN311368

LINKAGE

formed LH

1шт.

10

BN69918

BUSHING

Connex

4шт.

11

BN311573

SPACER,26.16mm ID x 35.05mm OD x 10.41mm L

2шт.

12

87016613

WASHER,25.8mm ID x 56.5mm OD x 6mm Thk

5шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

13

BN52330

PIN, ROLL

1/4 x 1 3/4

5шт.

14

BN301332

BOLT,Hex, M10 x 55, 10.9

3шт.

15

BN304419

NUT

M10-1.5, NLN, 10.9

3шт.

16

BN301020

BOLT,Hex, M8 x 16, 10.9

1шт.

17

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.
