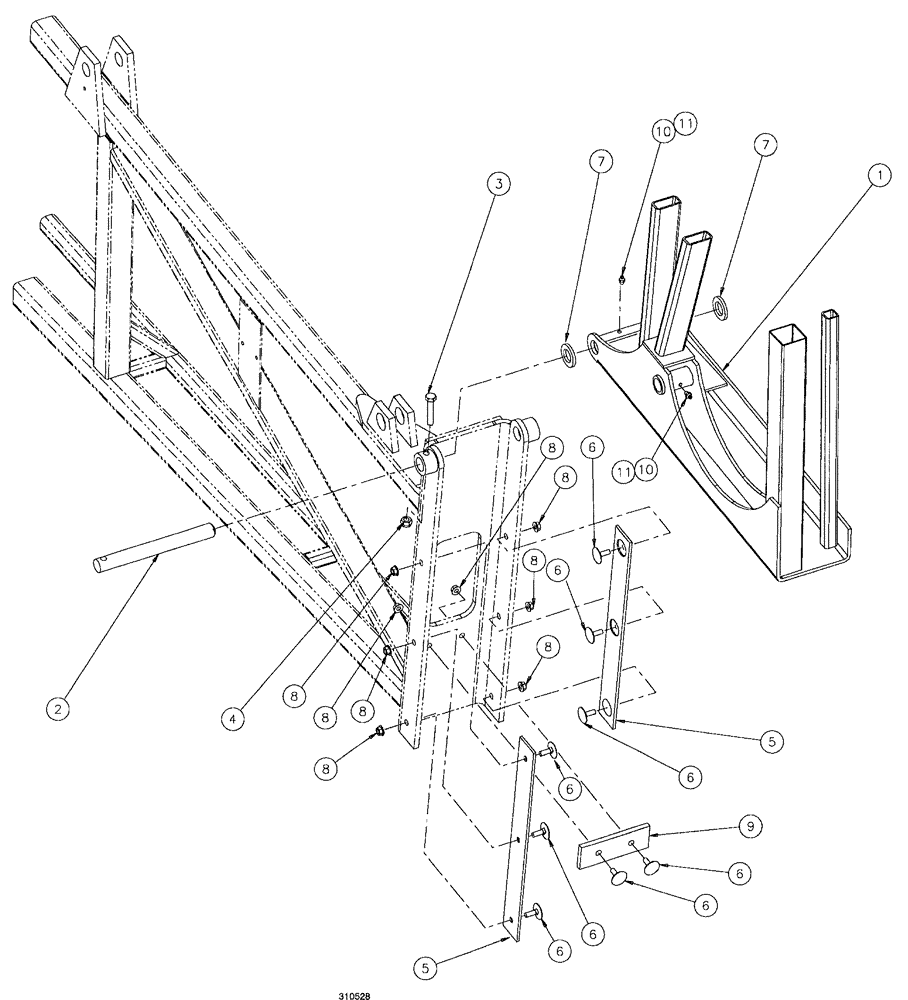

Запчасти Case IH SPX4260 (214) - 60 - 90 OUTER BOOM ASSEMBLY (78) - SPRAYING

1

BN320278

BOOM

Outer Section, 90', RH

1шт.

¤

BN320279

BOOM

LH Outer-90'

1шт.

Indicates an "or" situation

1шт.

2

BN307893

PIN,25.4mm OD x 236.47mm L

V-fold

1шт.

3

BN301332

BOLT,Hex, M10 x 55, 10.9

1шт.

4

BN304419

NUT

M10-1.5, NLN, 10.9

1шт.

5

BN69856

PLATE

LINER, plastic, 3/16 x 2 x 17.50

2шт.

6

BN50014

BOLT

5/16"-18 x .75, EH

8шт.

7

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

8

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

8шт.

9

BN305437

BUMPER

rubber 2 x 6 x .63

1шт.

10

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

11

BN55015

NIPPLE, LUBE

NIPPLE Lithium 12-Grade#2, 0.4

1шт.
