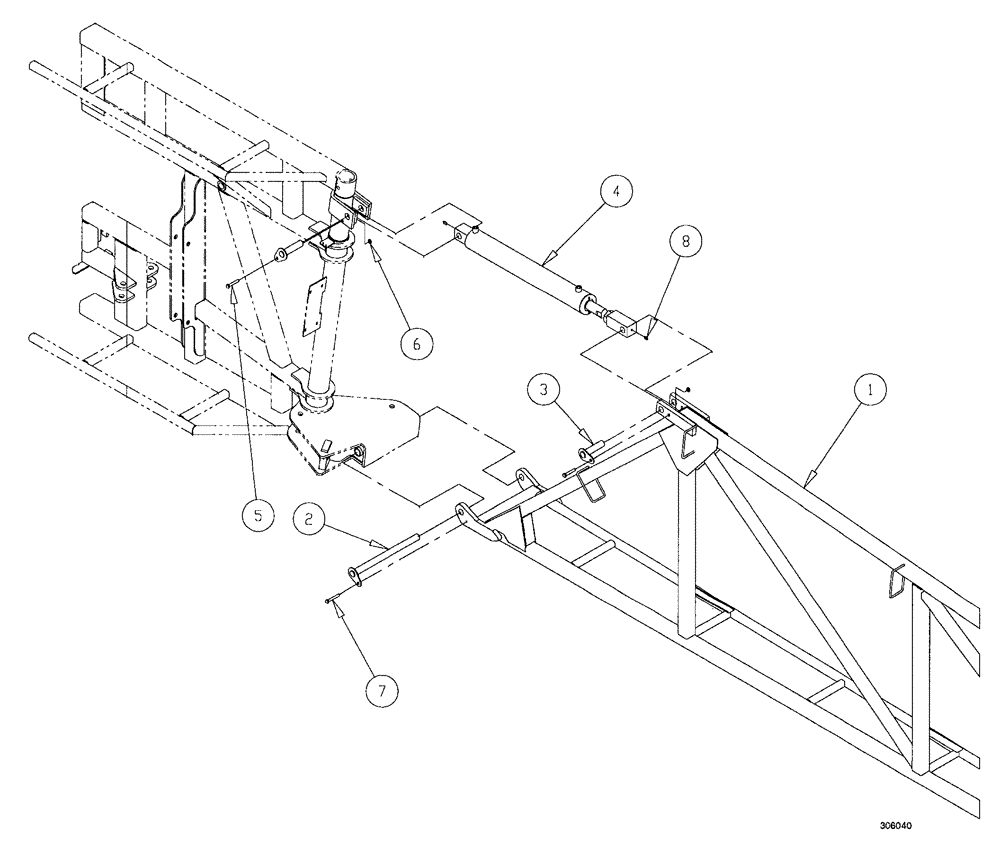

Запчасти Case IH SPX4260 (213) - WING ASSEMBLY, 60 (78) - SPRAYING

1

BN305627

FRAME

inner section RH

1шт.

Shown

1шт.

~

BN305630

FRAME

inner section LH

1шт.

Indicates same general part but opposite side

1шт.

2

BN306670

PIN,25.4mm OD x 368.3mm L

1шт.

3

BN305621

PIN

2шт.

4

NSS

NOT SOLD SEPARAT

CYL HYD 3 x 21 x 1.5 BOOM LEV

1шт.

See Fig. 201

1шт.

5

BN304419

NUT

M10-1.5, NLN, 10.9

2шт.

6

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

7

BN301020

BOLT,Hex, M8 x 16, 10.9

1шт.

8

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.
