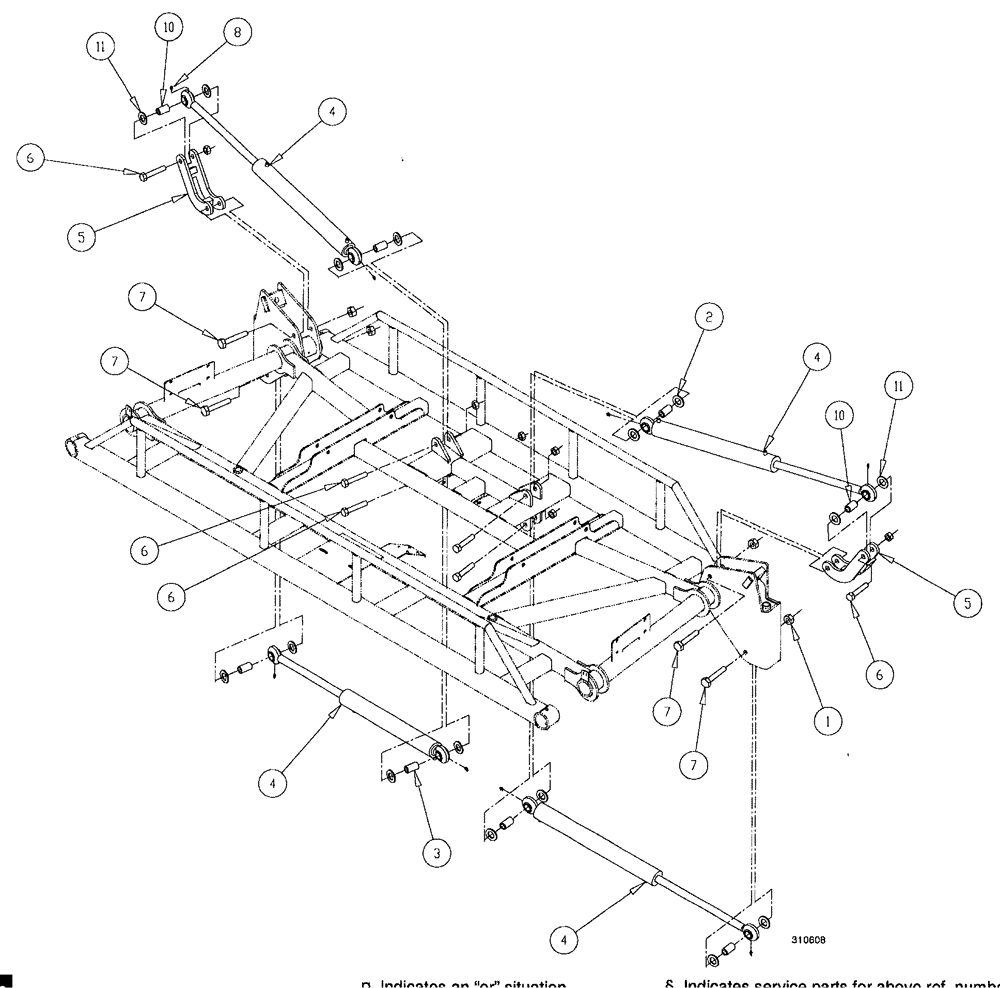

Запчасти Case IH SPX4260 (212) - INNER LOWER PIVOT ASSEMBLY (78) - SPRAYING

1

380424

NUT,M20 x 2.5, Cl 8

10шт.

2

BN306673

PLATE

washer

12шт.

3

BN309295

BUSHING

2.215 LG x 1.25 OD

6шт.

4

NSS

NOT SOLD SEPARAT

CYLINDER-INNER BREAK

4шт.

See Fig. 203

1шт.

5

BN310006

ARM

inner break-away

2шт.

6

BN310279

BOLT

M20 x 108 shank

6шт.

7

BN310280

BOLT

M20 X 125 Shank, Cutoff

4шт.

8

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

8шт.

10

BN310896

BUSHING,20.24mm ID x 31.75mm OD x 51.56mm L

2.03 LG x 1.25 OD

2шт.

*11

95-81139

WASHER,1.31" ID x 2" OD x 0.11" Thk

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.
