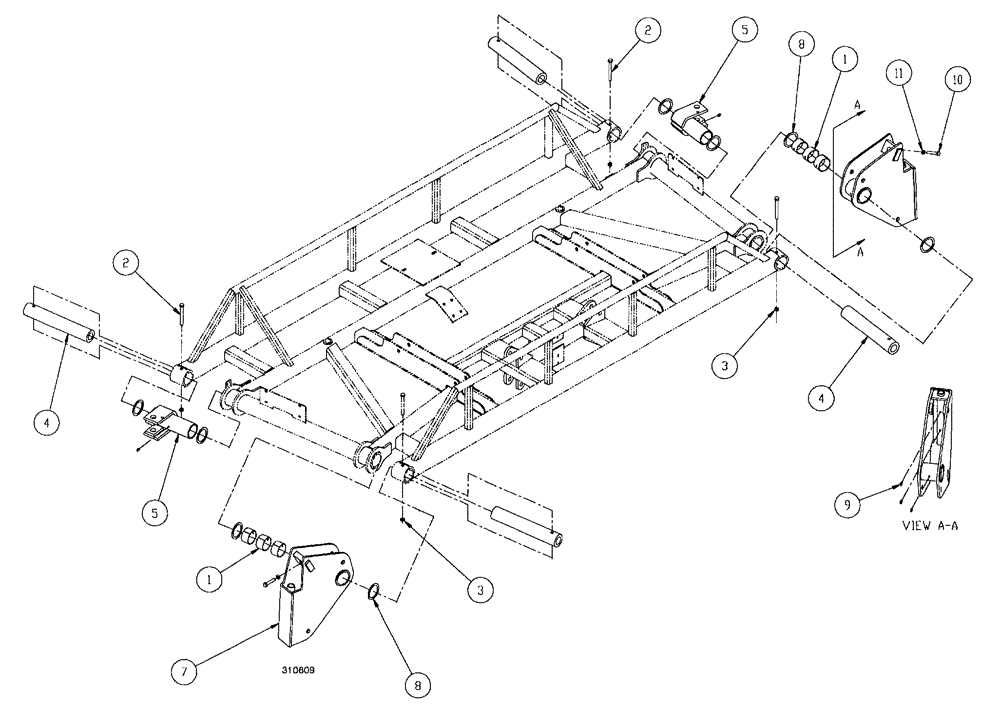

Запчасти Case IH SPX4260 (211) - MAST PIVOT ASSEMBLY (78) - SPRAYING

1

87266251

BEARING LINER

Garlock

6шт.

2

86508622

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

3

100038

NUT,M12 x 1.75, Cl 8

4шт.

4

BN306646

TUBE

Inner Pivot

4шт.

5

BN306666

MOUNTING PARTS

cylinder

2шт.

6

BN309393

PIVOT

inner, RH, Years: -01-SEP-01

1шт.

6

87268417

PIVOT

Inner Boom, RH, Start Year: 01-SEP-01

1шт.

7

BN309408

PIVOT

inner, LH, Years: -01-SEP-01

1шт.

8

BN302048

SHIM,64.01mm ID x 98.55mm OD x 2.55mm Thk

3.88" od x 2.52 id x 14 GA

8шт.

9

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

8шт.

7

87268416

PIVOT

Inner Boom, LH, Start Year: 01-SEP-01

1шт.

10

BN50674

BOLT

1-14 x 3, HH, G8

2шт.

11

425-1516

JAM NUT,Jam, 1"-14, G5

2шт.
