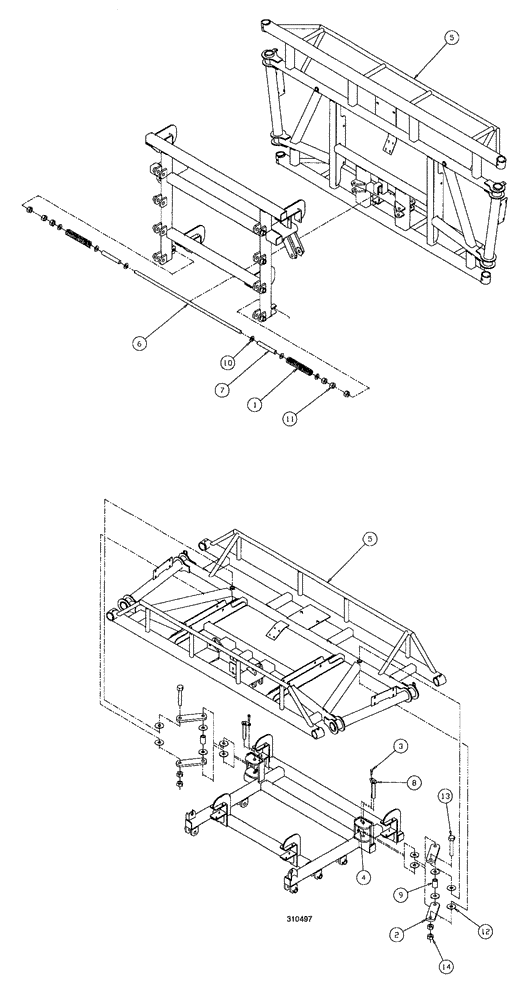

Запчасти Case IH SPX4260 (208) - CENTER SECTION ASSEMBLY (78) - SPRAYING

1

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

2

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

3

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

4

BN304419

NUT

M10-1.5, NLN, 10.9

2шт.

5

BN306672

FRAME

center section

1шт.

6

BN306783

SHAFT

threaded 1"

1шт.

7

BN306784

TUBE

RND spacer 1.25 x 12G

2шт.

8

BN306785

PIN

2шт.

9

BN308003

BUSHING

hanger

2шт.

10

87016613

WASHER,25.8mm ID x 56.5mm OD x 6mm Thk

4шт.

Part available only through Case's North American Parts Organization (NAPO).

1шт.

11

87553819

JAM NUT

1"-8 Hex, Jam

6шт.

12

50161

WASHER Hex, 3/4"-10 x 5", G5

14шт.

13

BN50363

BOLT

1-14 X 6, HH, 5, PL

2шт.

14

425-1516

JAM NUT,Jam, 1"-14, G5

4шт.

ns

SMV ASSY(EMBLEM,MT.,PLT) (See Figure 272)

1шт.
