(091) - BATTERY WITH CABLES GROUP

Запчасти Case IH SPX4260 (091) - BATTERY WITH CABLES GROUP (55) - ELECTRICAL SYSTEMS

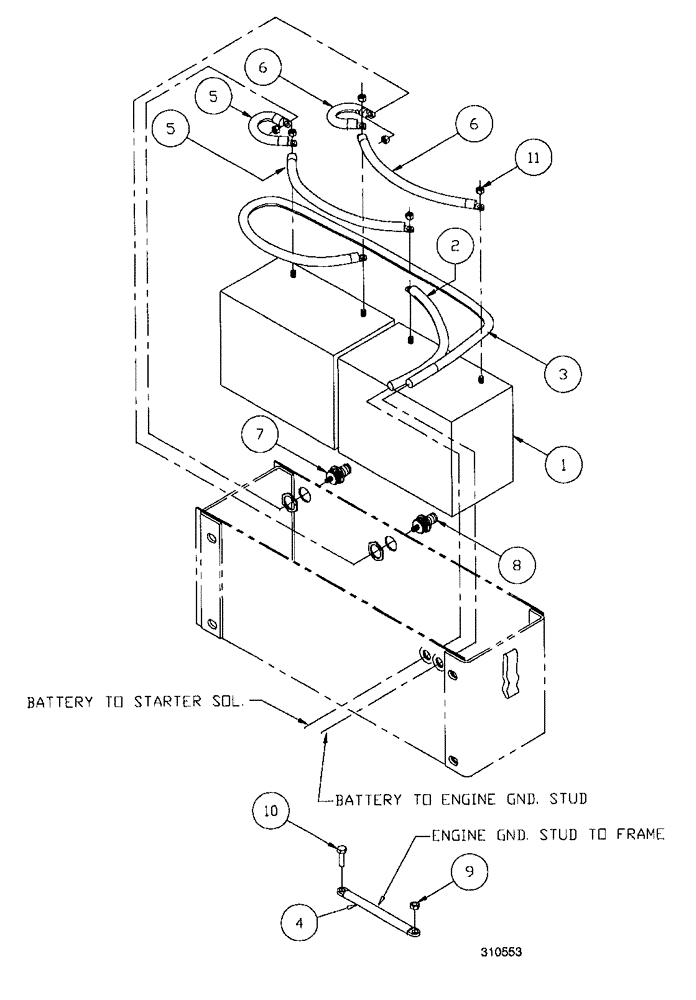

Схема запчастей Case IH SPX4260 - (091) - BATTERY WITH CABLES GROUP (55) - ELECTRICAL SYSTEMS
1
5
7
10
4
11
6
2
8
6
9
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN300091

BATTERY

12V DC, 950 CCA

2шт.

2

BN312600

ELECTRICAL WIRE

WIRE ASS'Y, 2/0 RED 50"

1шт.

3

BN312601

ELECTRICAL WIRE

WIRE ASS'Y, 2/0 BLK 40"

1шт.

4

BN306467

ELECTRICAL WIRE

WIRE ASS'Y, 2/0 BLK 12

1шт.

5

BN307616

ELECTRICAL WIRE

WIRE ASS'Y, 0 RED 16.5"

2шт.

6

BN307617

ELECTRICAL WIRE

WIRE ASS'Y, 0 BLK 16.5"

2шт.

7

BN306555

TERMINAL CONNECTOR

jump, BAT, POS, W/cap

1шт.

8

BN306556

TERMINAL CONNECTOR

jump, BAT, NEG, W/cap

1шт.

9

BN50131

LOCK NUT

3/8-16, CTR, PL

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

11

BN55360

LOCK NUT

5/16"-18, NLN, G5

4шт.
