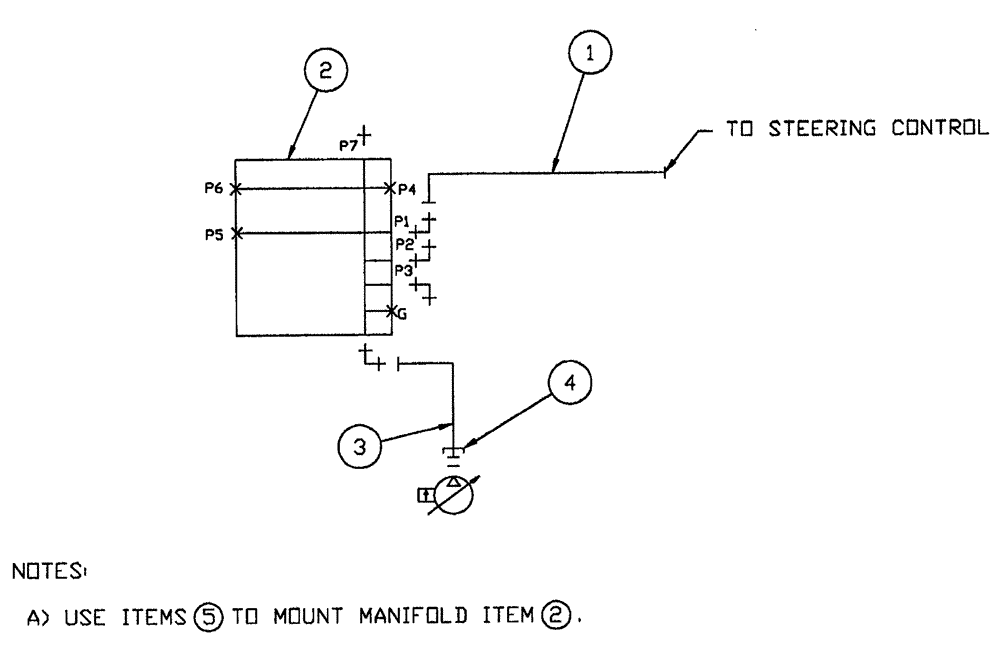

Запчасти Case IH SPX4260 (06-017) - MANIFOLD GROUP Hydraulic Plumbing

1

BN307861

HOSE ASSY.

1шт.

2

BN323902

MANIFOLD

Pressure COMP.

1шт.

See Fig. 06-021-02

1шт.

3

BN316683

HOSE ASSY.,19.05mm ID x 2692.4mm L

12 X 106"

1шт.

3a

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

For flat face end of hose BN316683

1шт.

3b

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

For flange fitting end of hose BN316683

1шт.

4

BN316600

KIT

Kit 3/4 Split Flange Co 61

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.
