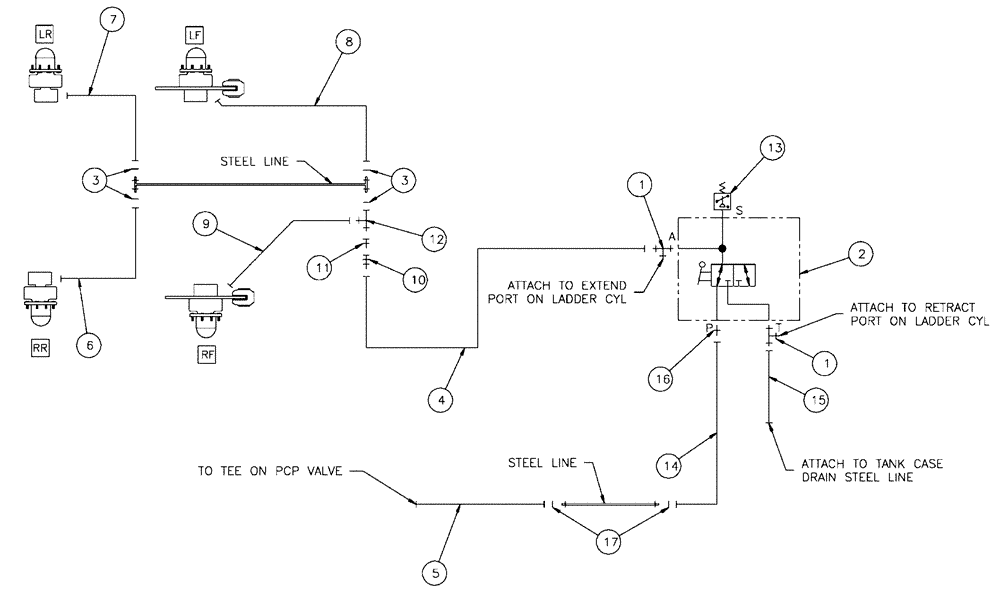

Запчасти Case IH SPX4260 (06-016) - PARK BRAKE GROUP Hydraulic Plumbing

1

BN302583

FITTING

6MOR-6MOR-6MBX

2шт.

2

BN324460

VALVE, BRAKE

Park Brake 2/3 Way

1шт.

3

BN305412

O-RING

FOR-6FFOR

4шт.

4

BN325118

HOSE ASSY.

6 X 64"

1шт.

5

BN324254

HOSE

6 x 26"

1шт.

6

BN325851

HOSE ASSY.

4 X 141"

1шт.

7

BN325852

HOSE ASSY.

4 X 175"

1шт.

8

BN325853

HOSE

4 X 168"

1шт.

9

BN325854

HOSE ASSY.

4 X 143"

1шт.

10

BN307992

COUPLING

Diagnostic -4MNPT

1шт.

11

BN307993

NIPPLE, LUBE

NIPPLE Diagnostic -6FFOR

1шт.

12

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel

1шт.

13

342105A1

SENSOR

Pressure N.C. 200 PSI

1шт.

14

BN325119

HOSE

6 X 40"

1шт.

15

BN325308

HOSE ASSY.

6 X 36"

1шт.

16

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

1шт.

17

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR-8FFOR

2шт.
