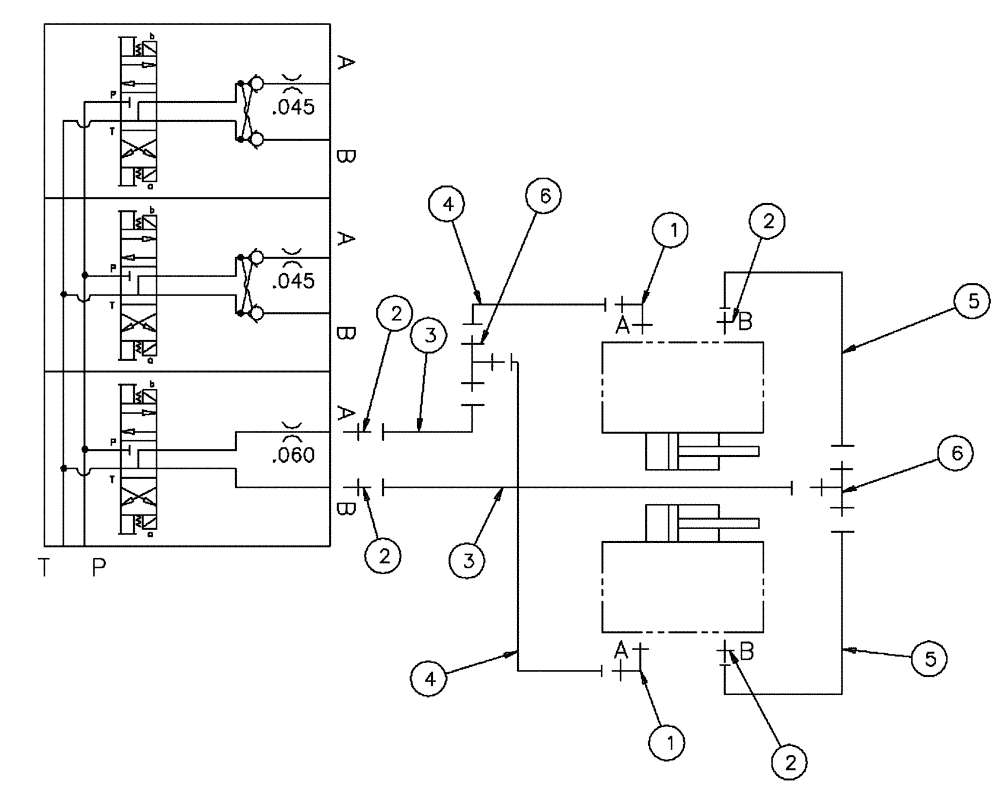

Запчасти Case IH SPX4260 (06-014) - BOOM HITCH ASSEMBLY, HYDRAULIC GROUP Hydraulic Plumbing

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

2

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

4шт.

3

BN307877

HOSE ASSY.

2шт.

4

BN307875

HOSE ASSY.

2шт.

5

BN307878

HOSE ASSY.

2шт.

6

BN302512

FITTING

6MOR-6MOR-6MOR

2шт.
