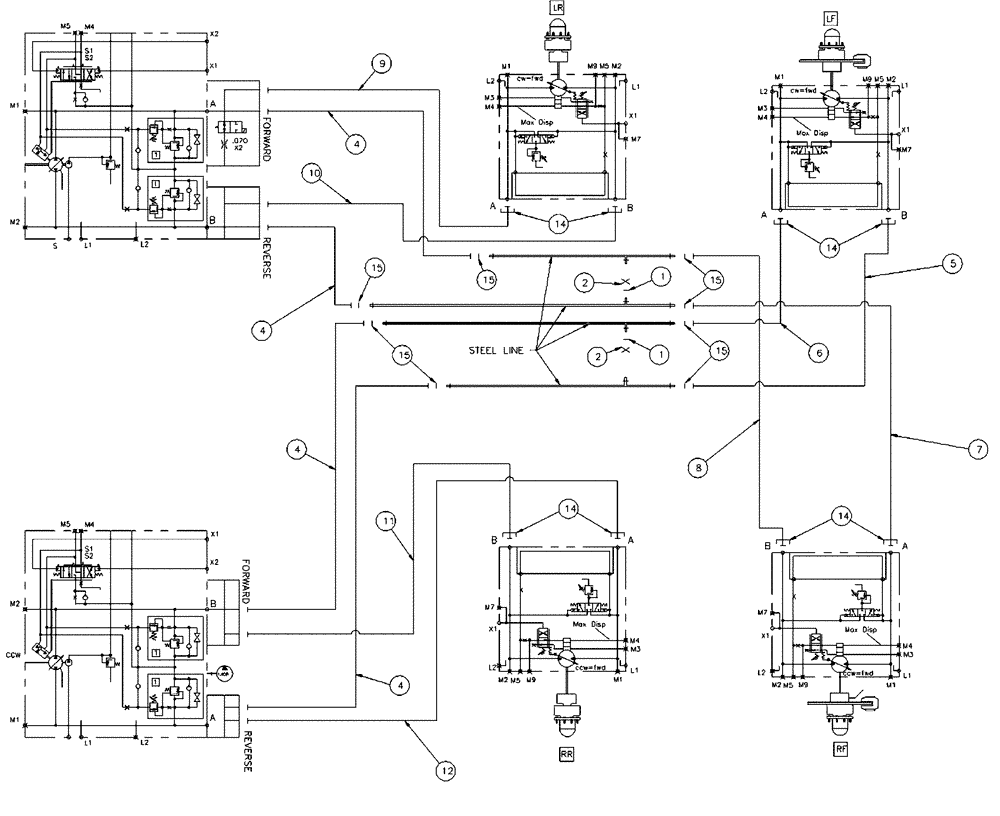

Запчасти Case IH SPX4260 (06-011) - HYDRAULIC DRIVE LOOP ASSEMBLY Hydraulic Plumbing

0

88902

NUT,3/8"-16

8шт.

0

BN313694

HOSE,2.88" ID x 34.00"

2шт.

0

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

12шт.

0

100037

LOCK NUT,M10 x 1.5, Cl 8

12шт.

1

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR-4FFOR

2шт.

2

BN305425

CAP

4 FFOR

2шт.

3

BN313695

CLAMP

Rework-307084

16шт.

4

BN307795

HOSE ASSY.,25.4mm ID x 1854.2mm L

4шт.

5

BN307796

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1шт.

6

BN307797

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1шт.

7

BN307798

HOSE ASSY.,25.4mm ID x 2819.4mm L, SAE 100R13

1шт.

8

BN307799

HOSE ASSY.,25.4mm ID x 2717.8mm L, SAE 100R13

1шт.

9

BN307800

HOSE ASSY.,25.4mm ID x 4622.8mm L, SAE 100R13

1шт.

10

BN307801

HOSE ASSY.,25.4mm ID x 4622.8mm L, SAE 100R 13

1шт.

11

BN307802

HOSE,25.4mm ID x 4622.8mm L, SAE 100R13

1шт.

12

BN307803

HOSE ASSY.,25.4mm ID x 4622.8mm L, SAE 100R13

1шт.

13

BN52035

CLAMP

2" Dia., Vinyl Coated

2шт.

14

BN52315

KIT

1" Split Flange Code 62

8шт.

15

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

ARP Standard #021

8шт.

16

BN67495

CLAMP

Dual (1 & 1/2" Tube)

8шт.

Does not include 87000231

1шт.

16

87000231

PLATE

hose clamp bar

8шт.

20

BN320383

CLAMP

1.25" W/320382

1шт.

Not Shown, holds the hoses to the pivot assembly on the front axle

1шт.

20

BN320382

INSERT

Rework BN320374

1шт.

20

BN320373

U-BOLT

BOLT "U" 3/8"-16 x 2.18 id

1шт.

20

87343970

NUT,3/8"-16, G8, DOR

2шт.
