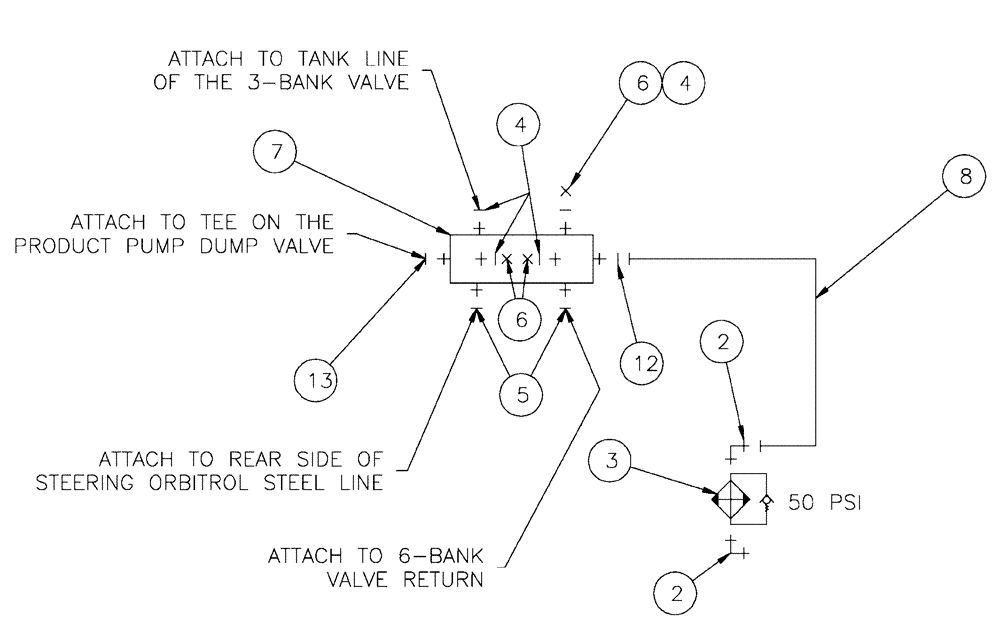

Запчасти Case IH SPX4260 (06-008) - OIL COOLER/MAN GROUP OIL Hydraulic Plumbing

0

BN300497

WASHER,M8, 10.9

4шт.

0

BN300499

WASHER,M10, 10.9

4шт.

0

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

0

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

2шт.

0

86528579

NUT,M8 x 1.25

4шт.

0

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

2

BN302574

ELBOW

16MOR-16MBX90

2шт.

2a

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

O-ring boss end

1шт.

2b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Face seal end

1шт.

3

BN302886

COOLER, OIL

HYD. -778

1шт.

4

BN305412

O-RING

FOR-6FFOR

4шт.

5

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

FOR-8FFOR

2шт.

6

BN305426

CAP

6 FFOR

3шт.

7

BN307639

MANIFOLD

HYD. Return

1шт.

8

BN307791

HOSE ASSY.

1шт.

12

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Standard #021

1шт.

13

BN53894

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

ARP Standard #018

1шт.
