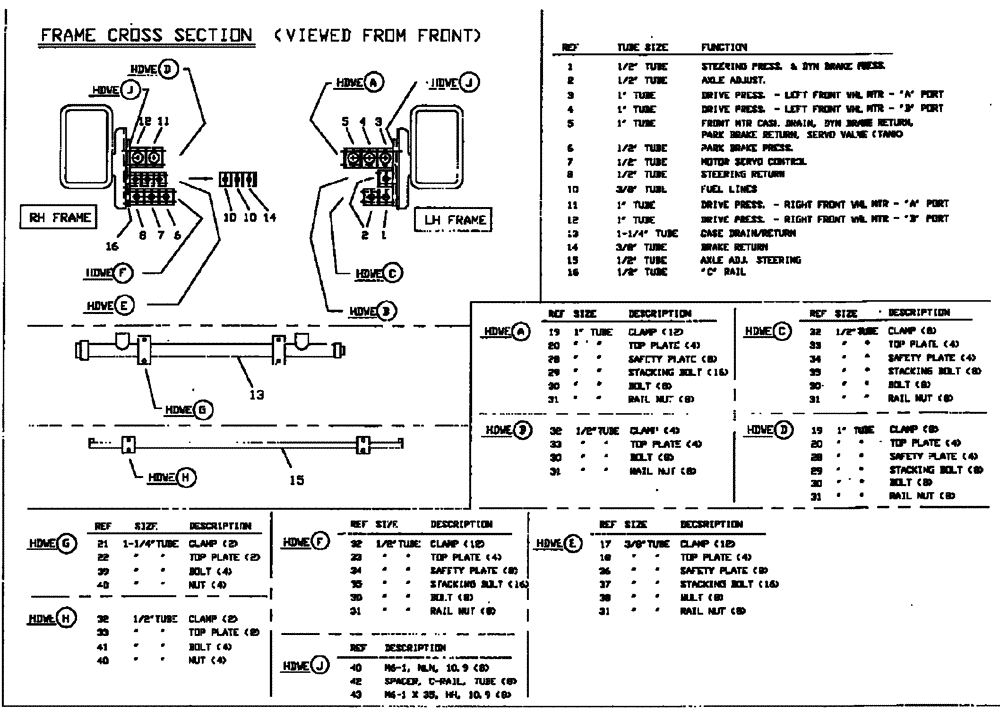

Запчасти Case IH SPX4260 (06-007) - HYDRAULIC TUBE GROUP, STANDARD Hydraulic Plumbing

0

BN300496

WASHER

M6, Flat, 10.9

4шт.

0

312958

SPARE PART

Bracket, Tube Clamp

2шт.

1

BN305996

TUBE

STR & DYN Brake PRS

1шт.

2

BN306004

TUBE

Axle Adjust

2шт.

3

BN325885

TUBE

Drive Pressure, LH

1шт.

4

BN325886

TUBE

Drive Pressure, LH

1шт.

5

BN305995

TUBE

Case Drain & Return

1шт.

6

BN306000

TUBE

Parking Brake

1шт.

7

BN306003

TUBE

Motor Servo Control

1шт.

8

BN305997

TUBE

Steering Return

1шт.

10

BN305999

TUBE

Fuel Line

2шт.

11

BN325883

TUBE

Drive Pressure RH

1шт.

12

BN325884

TUBE

Drive Pressure, RH

1шт.

13

BN319659

TUBE

STL, Return Manifold

1шт.

14

BN309602

BRAKE LINE

Return

1шт.

15

BN323702

TUBE

Steel, HYG. Line

1шт.

16

BN313247

RAIL

STD Duty

8шт.

17

BN307078

CLAMP

Pair-3/8 Tube

12шт.

18

BN307079

PLATE

Top, Clamp 3/8" Tube

4шт.

19

BN307080

CLAMP

Pair, 1 " Tube

20шт.

20

BN307081

PLATE

Top, Clamp-1" Tube

8шт.

21

BN307082

CLAMP

Pair 1.25" Tube

2шт.

22

BN307083

PLATE

Top, Clamp 1.25" Tube

2шт.

26

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

8шт.

28

BN313265

PLATE

Safety -1" tube

12шт.

29

BN313261

BOLT

Stacking 1/4"-20 x 1.12

24шт.

30

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

40шт.

31

BN313262

NUT

C-Rail (1/4"-20)

48шт.

32

BN29783

CLAMP

Single, 1/2" Tube

26шт.

33

BN29785

PLATE

Cover, Single, 1/2" Tube

14шт.

34

BN313264

PLATE

Safety 1/2"Tube

12шт.

35

BN313261

BOLT

Stacking 1/4"-20 x 1.12

24шт.

36

BN313263

PLATE

Safety 3/8"Tube

8шт.

37

BN313259

BOLT

Stacking (1/4"-20)

16шт.

38

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

8шт.

39

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

4шт.

40

353308

NUT,M6 x 1.0, Cl 8

24шт.

41

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

42

BN316101

SPACER

C-Rail, HYD. Tube

8шт.

43

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

8шт.
