(06-006) - HYDRAULIC GROUP, OUTER FOLD, NO CYLINDER

Запчасти Case IH SPX4260 (06-006) - HYDRAULIC GROUP, OUTER FOLD, NO CYLINDER Hydraulic Plumbing

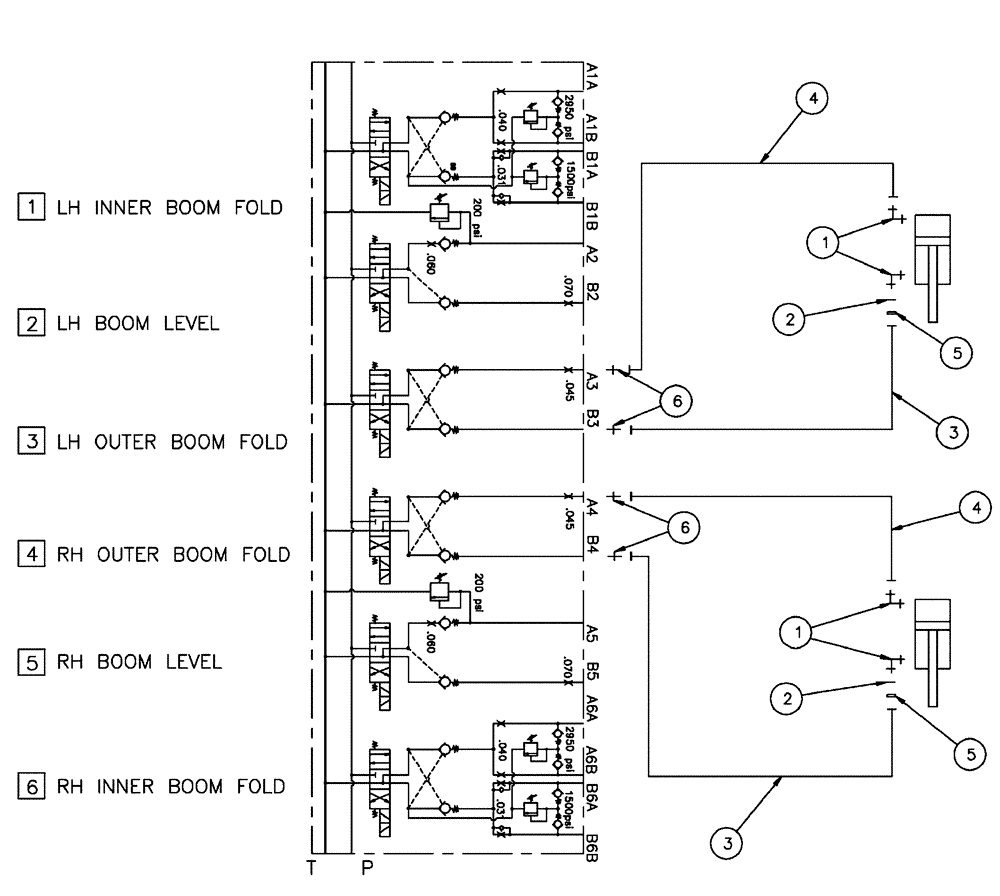

Схема запчастей Case IH SPX4260 - (06-006) - HYDRAULIC GROUP, OUTER FOLD, NO CYLINDER Hydraulic Plumbing
3
4
2
6
2
6
1
3
4
5
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

4шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

2

BN305412

O-RING

FOR-6FFOR

2шт.

3

BN307879

HOSE ASSY.,6.35mm ID x 9855.2mm L

2шт.

4

BN307880

HOSE ASSY.,6.35mm ID x 9423.4mm L, SAE 100R17

2шт.

5

BN313268

ORIFICE

.042 -6 Disk

2шт.

6

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

4шт.
