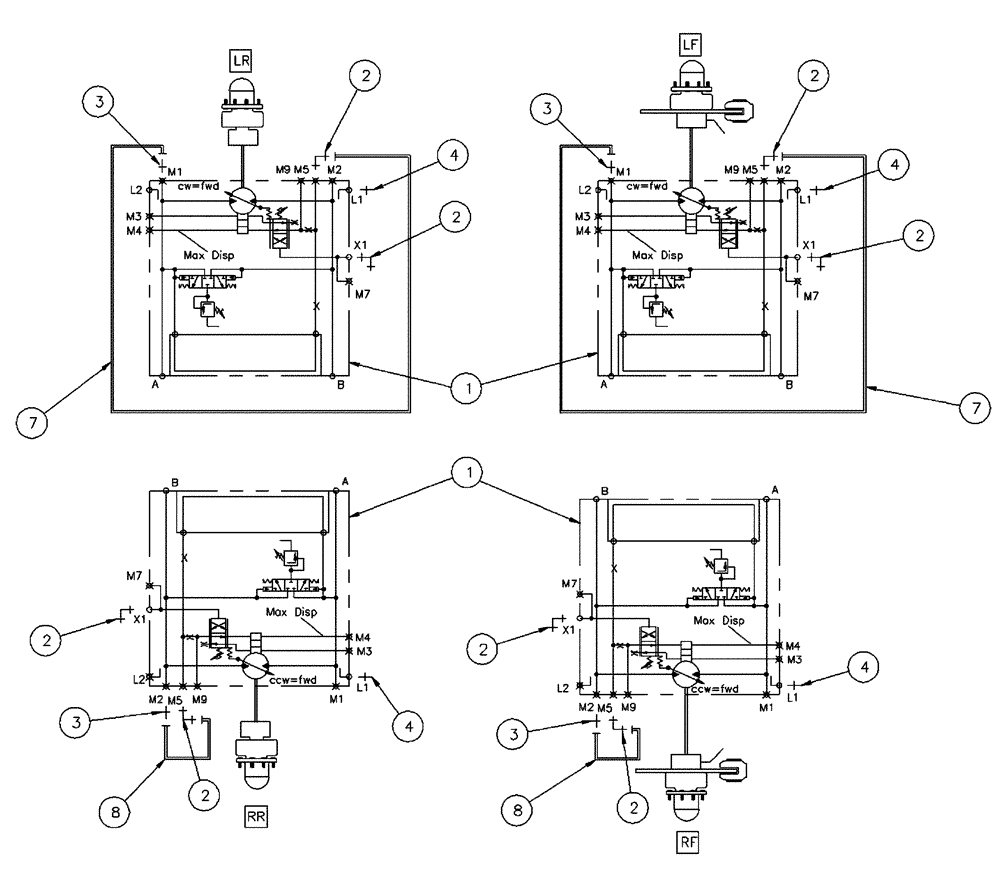

Запчасти Case IH SPX4260 (06-005) - WHEEL MOTOR GROUP, STANDARD Hydraulic Plumbing

0

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

8шт.

1

BN316874

MOTOR, HYDRAULIC

Series 51,80 CC

4шт.

2

BN302549

ELBOW

4MOR-6MBX90

12шт.

4

BN302655

FITTING

12MOR-12MB

4шт.

7

BN320668

TUBE

Jumper M1 M2 .049 W

2шт.

8

BN320669

TUBE

Jumper M2 M5 .049 W

2шт.
