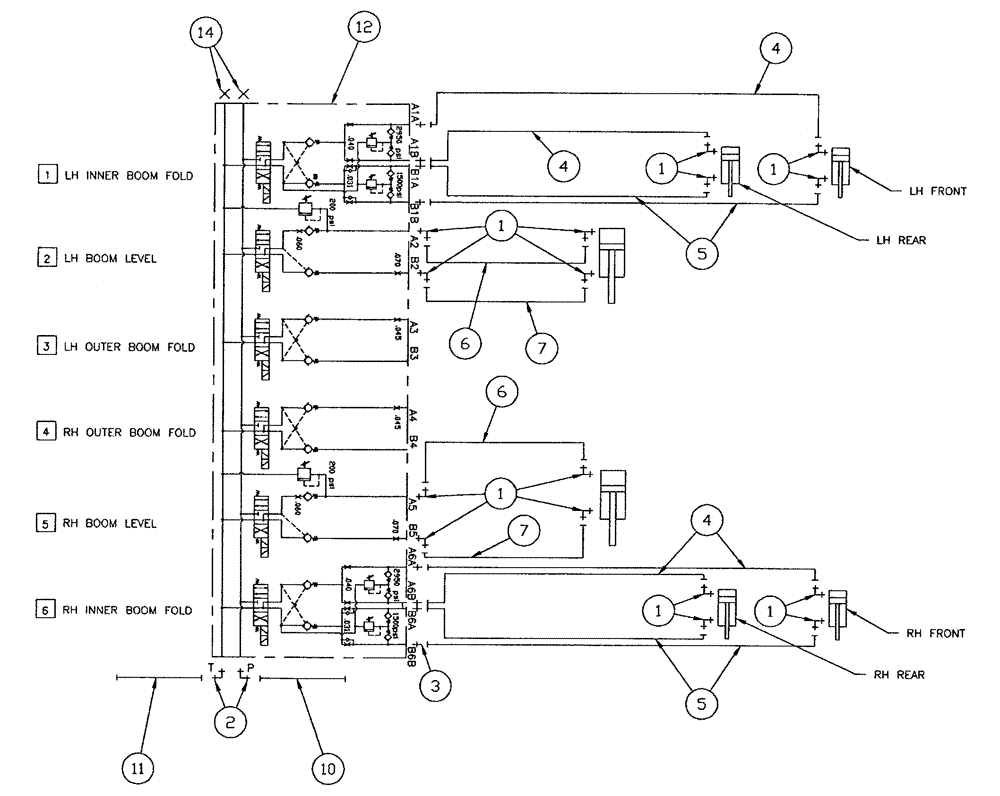

Запчасти Case IH SPX4260 (06-004) - HYDRAULIC GROUP, 60 STANDARD BOOM Hydraulic Plumbing

1

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

16шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

1b

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

2

BN302558

ELBOW

8 MOR 8MB X 90

2шт.

3

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

8шт.

4

342591A1

HOSE ASSY.

6 x 40"

4шт.

5

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

6 X 64"

4шт.

6

BN324327

HOSE ASSY.

6 X 64"

2шт.

7

BN324328

HOSE ASSY.

6 X 90"

2шт.

8

309308

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

9

100038

NUT,M12 x 1.75, Cl 8

2шт.

10

BN307881

HOSE ASSY.

1шт.

11

BN307882

HOSE ASSY.

1шт.

12

BN310932

VALVE

6-SEC. Boom/ Suspension, See Fig 06-024

1шт.

14

BN446025

PLUG

Hex O-Ring-3/4-16

2шт.
