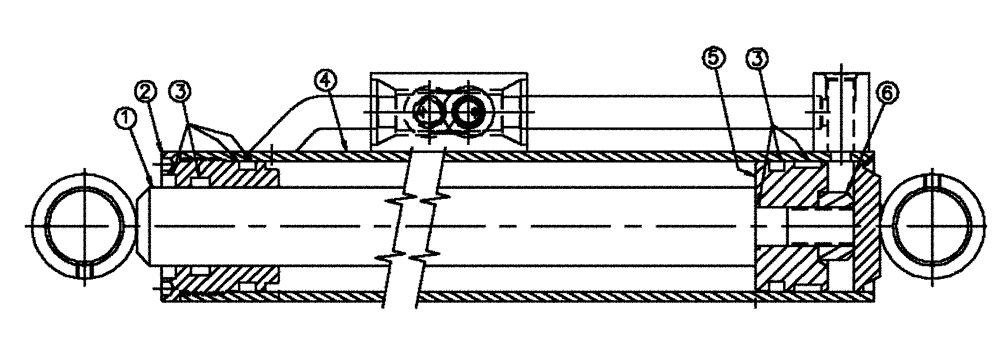

Запчасти Case IH SPX4260 (07-008) - BOOM HEIGHT Cylinders

0

BN310563

BLOCK

Stroke (5.5")

1шт.

1

BN321124

ROD

1шт.

2

BN98650

GLAND

End Gland-For Cylinder

1шт.

3

86986302

SEAL KIT

Hyd. Cylinder

1шт.

4

BN321125

TUBE

1шт.

5

BN98651

PISTON

For Cylinder

1шт.

6

BN98093

LOCK NUT

3/4"-16NF

1шт.

BN321121

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 819.94mm Stroke

Complete Boom Height

1шт.
