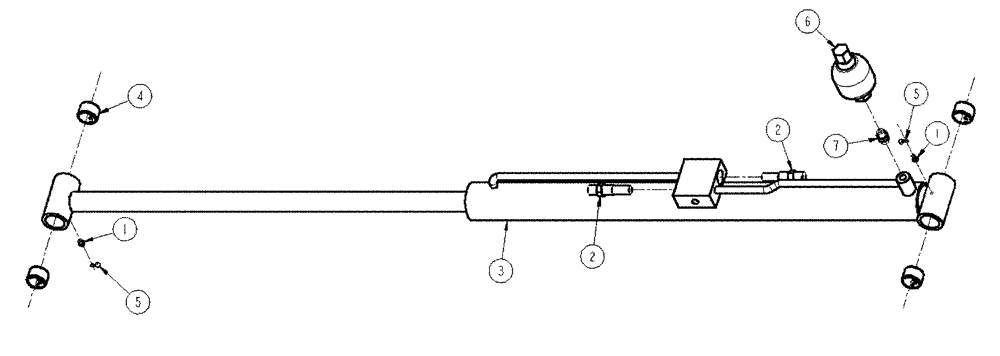

Запчасти Case IH SPX4260 (07-007) - CYLINDER GROUP, PARALLEL LINK Cylinders

1

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

2

342104A1

VALVE

Counterbalance 3000 psi

2шт.

2a

344010A1

SEAL KIT

for T-11A cavity

1шт.

Service Parts For Ref. 2

1шт.

Includes 3 o-rings and 3 back-up washers

1шт.

3

BN321121

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 819.94mm Stroke

2.50 X 32.28 X 1.5

1шт.

See Fig. 07-008

1шт.

4

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

Bushing, Spring

4шт.

5

BN69951

CAP

Cap, Grease

2шт.

6

344000A1

ACCUMULATOR

10 cu 1000 psi

1шт.

7

BN313038

FITTING

6MB-6MB

1шт.
