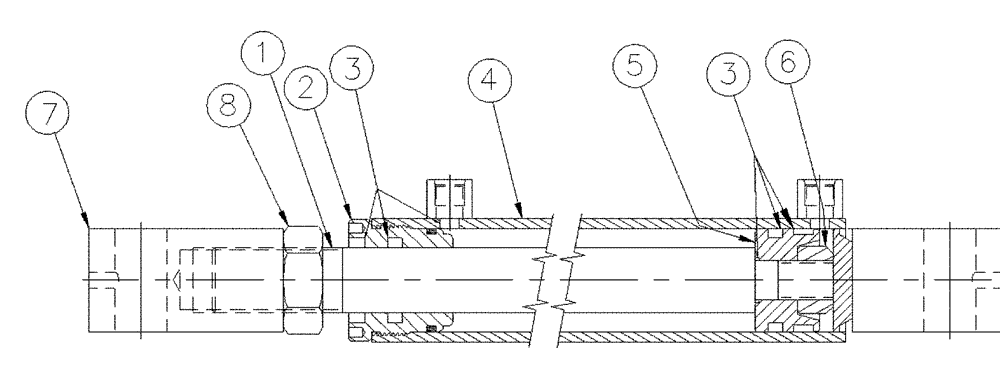

Запчасти Case IH SPX4260 (07-005) - OUTER BOOM FOLD Cylinders

1

BN305499

SHAFT

1шт.

2

BN98522

GLAND

End, For Cylinder BN52305

1шт.

3

BN305501

SEAL PACKAGE

Kit, Urethane O-Ring

1шт.

4

BN305502

CYLINDER

Tube

1шт.

5

BN305503

PISTON

1шт.

6

BN305504

LOCK NUT

3/4-16 UNF

1шт.

7

BN305505

CLEVIS

Threaded Eye

1шт.

8

BN2294429

JAM NUT

Jam 1 1/4"-12

1шт.

BN305034

CYLINDER ASSY.

Complete Outer Boom Fold

1шт.

87266449R

REMAN-HYD CYLINDER

SPX4260 SPRAYER, Complete Outer Boom Fold, OUTER BOOM FOLD (11/01-6/04), Reman for New PN BN305034

1шт.

87266449C

CORE-HYD CYLINDER

Return Number

1шт.
