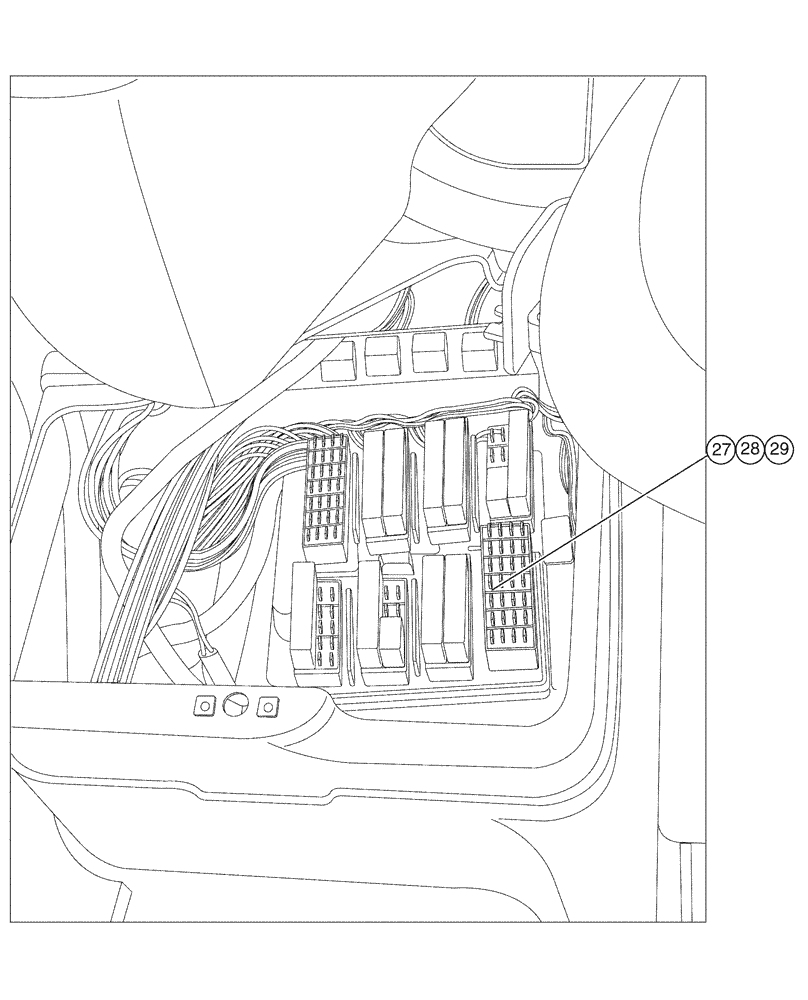

Запчасти Case IH SPX4260 (01-021[02]) - RH COVER ASSEMBLY W/SWITCHES Cab Interior

1

BN321614

CONSOLE

Control

1шт.

2

NSS

NOT SOLD SEPARAT

Decal, Product Control

1шт.

3

NSS

NOT SOLD SEPARAT

Decal, Boom Section

1шт.

4

NSS

NOT SOLD SEPARAT

Decal, Foam Control

1шт.

5

NSS

NOT SOLD SEPARAT

Decal, Boom Position

1шт.

6

NSS

NOT SOLD SEPARAT

Decal, Wheel Spacing

1шт.

7

NSS

NOT SOLD SEPARAT

Decal, Console, Propulsion Control

1шт.

8

128833A2

GUIDE

Propulsion Control Lever

1шт.

8a

BN323495

ADAPTER

Reverse

1шт.

Associated Part Of Adapter, P/N 128833A2

1шт.

8b

BN323496

TOGGLE SWITCH

Neutral Safety Switch

1шт.

Associated Part Of Adapter, P/N 128833A2

1шт.

8c

BN322638

SENSOR

Assemblyy, Rotary Position

1шт.

Associated Part Of Adapter, P/N 128833A2

1шт.

9

BN321912

SWITCH

assembly, foam activate

1шт.

10

BN321914

SWITCH

Boom Height

1шт.

10a

BN325825

SPACER

Switch

1шт.

Associated Part Of Spacer, Switch, P/N BN321914

1шт.

11

BN321913

SWITCH

Switch, ASM, Boom Fold, LH

1шт.

11a

BN325825

SPACER

1шт.

Associated Part Of Spacer, Switch, P/N BN321913

1шт.

12

BN321915

SWITCH

Boom Fold RH

1шт.

13

BN321917

SWITCH

ASM, Pump

1шт.

13a

BN325825

SPACER

Switch

1шт.

Associated Part Of Spacer, Switch, P/N BN321917

1шт.

14

BN321916

SWITCH

Sparge Pressure

1шт.

14a

BN325825

SPACER

1шт.

Associated Part Of Spacer, Switch, P/N BN321916

1шт.

15

BN322626

PLUG

Panel, NGR

1шт.

16

282056A1

PLUG

double d

1шт.

17

BN321907

SWITCH

ASM, Aim Command System Set

1шт.

18

BN321908

SWITCH

ASM, Aim Command Pressure Adjust

1шт.

19

BN321909

PRESSURE SWITCH

ASM, Aim Command Pressure Set

1шт.

20

BN321911

SWITCH

ASM, Fence Row

1шт.

21

BN321910

SWITCH

ASM, Boom Section

1шт.

22

NS

NOT SERVICED

1шт.

23

118780A1

KNOB

Console Control

1шт.

24

86625127

PLUG,Dome, .375" hole, Nylon

1шт.

25

BN325618

POTENTIOMETER,1000 Ohm

Assembly, Ground Speed

1шт.

26

BN323620

SWITCH

Assembly, Axle In/Out

1шт.

27

121411A1

FUSE,7.5A, Mini, Brown

1шт.

28

121412A1

FUSE,10A, Mini, Red

5шт.

29

121413A1

FUSE,15A, Mini, Blue

2шт.

29a

342194A1

CONTROL

SX, Propel

1шт.
