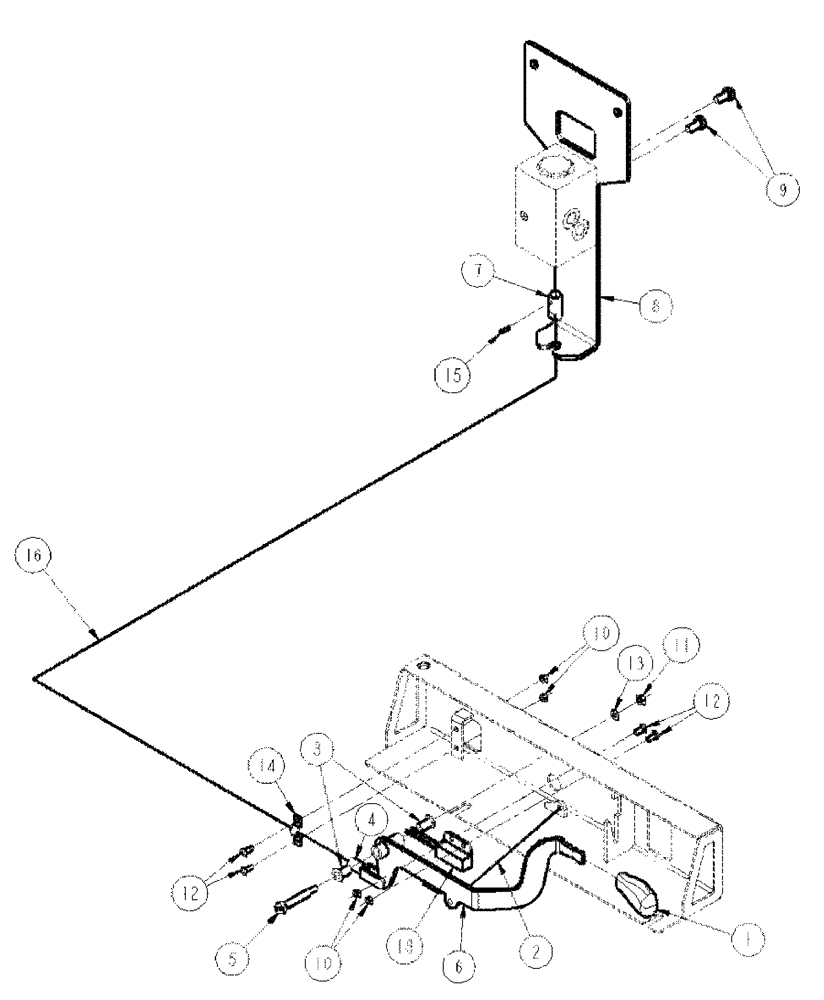

Запчасти Case IH SPX4260 (01-020) - PARK BRAKE GROUP Cab Interior

1

134071A1

KNOB

Throttle Control

1шт.

2

BN311889

SPRING

.50 X 2.00 X .067, SS

1шт.

3

BN319151

BUSHING

5/16, Shlder, Nylon

2шт.

4

BN320574

CLEVIS

w/Pin

1шт.

5

BN325062

BOLT

M6-1, Shoulder Bolt, 8 X 40

1шт.

6

BN325065

LEVER

Park Brake

1шт.

7

BN325079

COLLAR

Valve Stem Adapter

1шт.

8

BN325080

BRACKET

Park Brake Valve

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

10

87016571

NUT,M5, Cl 5

4шт.

11

353308

NUT,M6 x 1.0, Cl 8

1шт.

12

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

A75815

CLAMP

Throttle Cable

1шт.

15

38-21010

PIN,3.96mm OD x 15.88mm L, Coiled

1шт.

16

BN325067

CABLE

Cable, Park Brake

1шт.

17

BN325306

HARNESS

Park Brake

1шт.

18

BN315498

SWITCH

Proximity

1шт.
