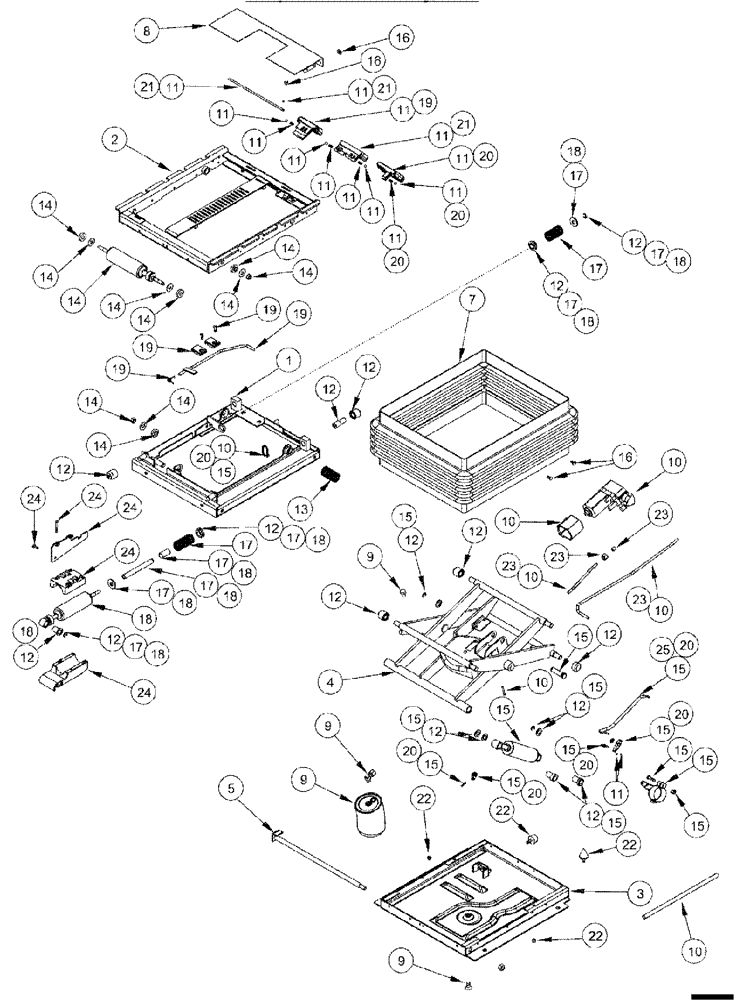

Запчасти Case IH SPX4260 (01-014) - SUSPENSION ASSEMBLY, SEAT Cab Interior

0

374353A2

PACKAGE,SERVICE

Suspension Assembly

1шт.

Consists Of Refs. 1 - 25

1шт.

1

333273A1

HOUSING

Upper

1шт.

2

333274A2

ISOLATOR

Lateral Track

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

302027A1

HARNESS

1шт.

Not Shown

1шт.

7

333278A1

BOOT

suspension

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

333280A1

PACKAGE,SERVICE

Kit, Air Compressor

1шт.

11

373469A1

PACKAGE,SERVICE

kit, suspension knob

1шт.

12

333283A2

KIT

kit, suspension bearing and rollers

1шт.

13

333284A1

PACKAGE,SERVICE

kit, lateral isolator spring

1шт.

14

333285A1

PACKAGE,SERVICE

kit, lateral isolator shock absorber

1шт.

15

333286A1

PACKAGE,SERVICE

Kit, Suspension Shock Absorber

1шт.

15a

374353A2

PACKAGE,SERVICE

Suspension Assembly

1шт.

Consists Of Refs. 1 - 25

1шт.

16

333659A1

PACKAGE,SERVICE

Kit, Boot Button

1шт.

17

333287A2

SPRING KIT

kit, fore and aft isolator spring

1шт.

18

333288A2

PACKAGE,SERVICE

kit, fore and aft shock absorber

1шт.

19

373470A2

KIT

kit, fore and aft isolator control

1шт.

20

373472A1

PACKAGE,SERVICE

Kit, Suspension Shock Absorber Control

1шт.

21

373473A1

PACKAGE,SERVICE

kit, lateral isolator control

1шт.

22

333295A1

BUMPER

Kit, Suspension Bumper

1шт.

23

333660A1

PACKAGE,SERVICE

Kit, Tube And Fitting

1шт.

24

333296A1

SERVICE KIT

Kit, Fore and Aft Isolator Shock Block

1шт.

25

374359A1

PACKAGE,SERVICE

Kit, Suspension Shock Cable

1шт.
