Запчасти Case IH SPX4260 (01-013) - CUSHION ASSEMBLY, SEAT Cab Interior

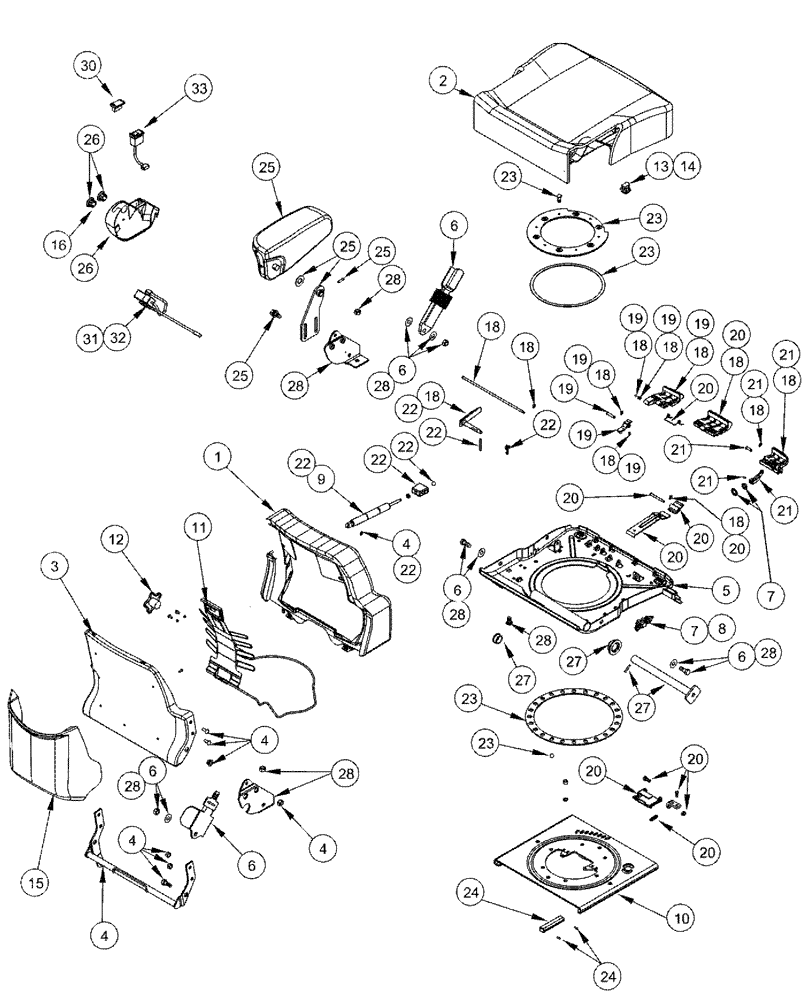

Схема запчастей Case IH SPX4260 - (01-013) - CUSHION ASSEMBLY, SEAT Cab Interior
21
22
18
28
23
18
18
26
19
18
28
11
6
25
6
28
4
23
31
19
27
18
6
28
18
6
6
9
32
20
22
18
23
18
20
20
18
18
24
28
13
23
19
20
6
27
19
16
23
19
7
18
7
22
4
4
15
14
4
2
33
18
21
21
8
22
22
25
20
21
1
24
19
22
19
26
12
20
20
25
5
20
25
4
3
22
28
21
28
20
10
28
30
27

Артикул

Название

Примечание

Количество

0

360319A2

CUSHION ASSY.

standard, deluxe : -JJA0108800, N.A. only

1шт.

Consists Of Refs. 1 - 30

1шт.

1

360329A1

BACKREST

cushion, standard, deluxe : -JJIA0108800

1шт.

2

360328A2

CUSHION ASSY.

standard, deluxe : -JIA0108800

1шт.

3

302005A1

PANEL

Backrest, Deluxe

1шт.

4

359959A1

TUBE

Kit, Torque

1шт.

5

375225A1

PAN

seat

1шт.

6

333657A2

KIT

kit, seat, N.A. only

1шт.

7

1981852C3

SWITCH

air control

1шт.

Includes Ref. 8

1шт.

8

1987186C2

KNOB

1шт.

9

302004A2

GAS STRUT

Spring, Gas Strut

1шт.

10

302001A1

PLATE

Swivel

1шт.

11

333104A2

KIT

lumbar

1шт.

Includes Ref. 12

1шт.

12

374387A1

KNOB

Knob, Lumbar

1шт.

13

333107A1

SWITCH

Operator Presence

1шт.

14

302011A1

HARNESS

Operator Presence

1шт.

15

333108A2

CASE

Box, Operators Manual, Deluxe

1шт.

16

374361A1

BLANK-OFF PLUG

heater switch cover

1шт.

17

373463A1

PACKAGE,SERVICE

Kit, Seat Knob

1шт.

19

373464A1

PACKAGE,SERVICE

Kit, Swivel Control

1шт.

20

373465A1

PACKAGE,SERVICE

Kit, Slide Control

1шт.

21

373466A1

KIT

Kit, Height Control

1шт.

22

373467A2

PACKAGE,SERVICE

Kit, Recliner Control

1шт.

23

391414A1

PACKAGE,SERVICE

Kit, Swivel

1шт.

24

302016A1

PACKAGE,SERVICE

kit, slide pucks

1шт.

25

361044A1

ARMREST

Kit, Armrest, Left Hand, Deluxe

1шт.

25

373468A1

PACKAGE,SERVICE

Kit, Armrest, Left Hand, Luxury

1шт.

26

374386A1

PACKAGE,SERVICE

Kit, Heater Switch Cover

1шт.

27

359951A1

KIT

Kit, Console Mount

1шт.

28

359950A1

PACKAGE,SERVICE

Kit, Side Brackets

1шт.

29

373462A2

PACKAGE,SERVICE

Kit, Jam Nut

1шт.

30

375200A1

PLUG

1шт.

30a

383593A1

HARNESS

kit, heater

1шт.

Includes Refs. 31 - 33

1шт.

31

383593A1

HARNESS

kit, heater

1шт.

Includes Ref. 32

1шт.

32

381201A1

HARNESS

Resistor

1шт.

33

381151A1

SWITCH

Heater

1шт.

Выбрано товаров: 40
