Запчасти Case IH SPX4260 (01-009) - STEERING CONTROL Cab Interior

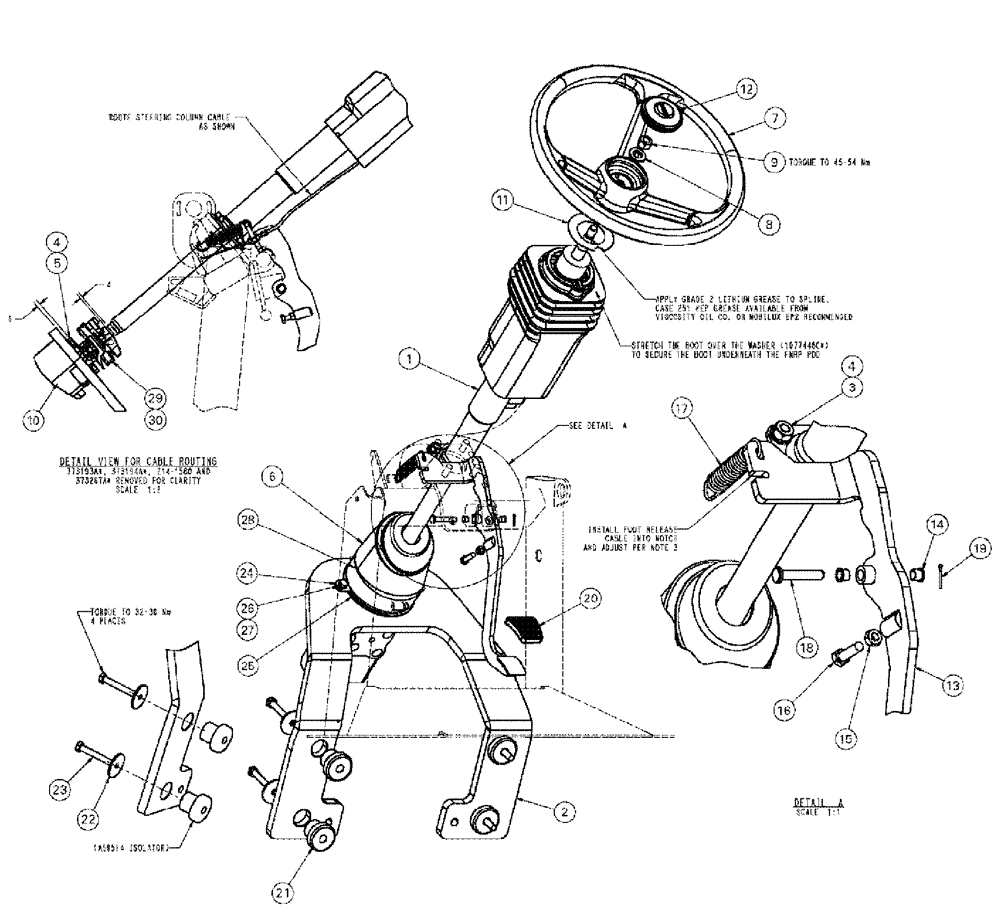

Схема запчастей Case IH SPX4260 - (01-009) - STEERING CONTROL Cab Interior
30
6
14
3
26
4
17
22
26
23
12
15
2
18
24
29
9
19
5
28
7
4
8
21
10
20
16
19
27
11
1

Артикул

Название

Примечание

Количество

1

373388A2

STEERING COLUMN

Adjustable, Years: -01-MAR-04

1шт.

1

86983411

STEERING COLUMN

Adjustable, Start Year: 01-MAR-04

1шт.

1a

318942A1

REPAIR KIT

Locking, Tilt

1шт.

2

379596A3

SUPPORT

Plate, Pump

1шт.

3

86500689

NUT,M10 x 1.5, Cl 10

4шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

8шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

6

373193A1

BOOT

Steering

1шт.

7

301200A1

STEERING WHEEL

deluxe

1шт.

8

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

9

86639148

NUT,M14 x 1.5, Cl 8

1шт.

10

375940A3

PUMP

Steering

1шт.

11

1977448C2

WASHER

Support, Boot

1шт.

12

361024A3

CAP

steering wheel, deluxe

1шт.

13

311748A3

PEDAL

steering adjust

1шт.

14

282892A1

BUSHING,8mm ID x 9.6mm OD x 8mm L

bearing, Nylon

2шт.

15

86639231

NUT,M8, Cl 10

1шт.

16

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17

311812A1

SPRING

Extension

1шт.

18

729-845

CLEVIS PIN,M8 x 45

1шт.

19

86639115

COTTER PIN,M2 x 12

1шт.

20

323657A1

PAD

Foot Release Pedal

1шт.

21

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Mount, Front

4шт.

22

495-81145

WASHER,13/32" x 1 3/4" x .120"

4шт.

23

627-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9, Full Thd

4шт.

24

373194A1

HOUSING

Boot Mounting

1шт.

25

373267A1

SEAL

Closed Cell Foam

1шт.

26

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

80043233

SCREW

Hex, M8 x 20, 10.9

2шт.

28

214-1580

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm, W/ Liner

1шт.

29

L100096

ISOLATOR

Bushing, Steering Noise

1шт.

30

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

Выбрано товаров: 32
