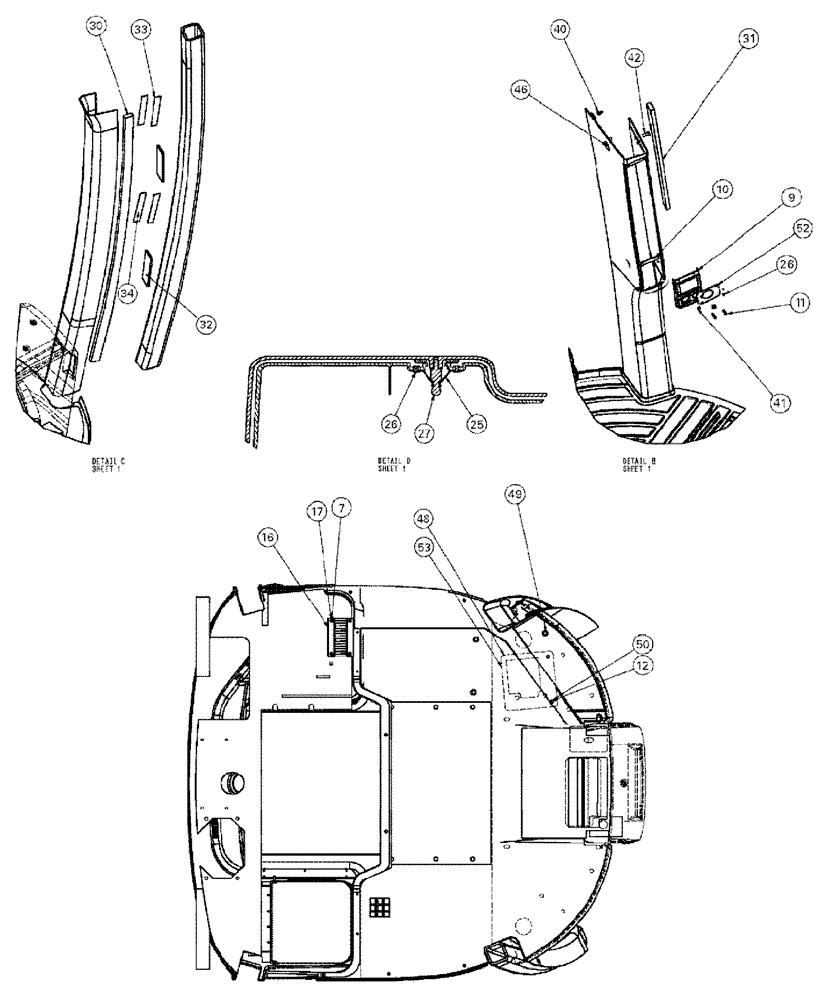

Запчасти Case IH SPX4260 (01-003[02]) - INTERIOR TRIM, DELUXE Cab Interior

1

410864A1

INSULATOR

Rear Floor

1шт.

2

283094A1

FILTER

Cab Recirculation

1шт.

3

60-7021T1

FOAM

Cable Clamp

4шт.

4

291835A4

BRACKET

Clamp, Cable

1шт.

5

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

6

360827A2

PAD, RUBBER

Cover, Left A Post Interior

1шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

8

259461A1

FOAM

Rear Rops

3шт.

9

414926A1

BEZEL

RH A Post

1шт.

10

303158A5

BRACKET

Bracket

1шт.

11

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

2шт.

12

628-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

8шт.

13

371685A4

BOX

Enclosure/A, Compact Disk

1шт.

14

250826A3

MAT

Insert, Trainer Seat

1шт.

15

291836A3

BRACKET

Clamp, Cable

1шт.

16

308579A1

BRACKET

Angle, Cable Access

2шт.

17

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

12шт.

18

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

5шт.

19

259587A4

FLOOR MAT

Main

1шт.

20

358334A3

COVER

RH A -Post Rops

1шт.

21

360826A3

PAD, RUBBER

Left C Post Interior

1шт.

22

377385A3

COVER

RH C-Post Rops

1шт.

23

380756A2

COVER

Electronics

1шт.

24

358327A4

CONSOLE

Rear

1шт.

25

1961465C1

LATCH

Cab Skirt Spring

1шт.

26

86637656

RIVET,Pop, 1/8" x .337"

6шт.

27

1977929C1

STUD,M5 x 0.8

Ball

1шт.

28

119308A2

TRAY

storage

1шт.

29

302456A1

ASH TRAY

1шт.

30

349366A2

FOAM

Tape

1шт.

31

355371A2

TAPE

foam

1шт.

32

356717A1

TAPE

foam

2шт.

33

356789A1

FASTENER

Velcro Hook

2шт.

34

357564A1

FASTENER

Velcro Loop

2шт.

35

114549A1

COAT HOOK

1шт.

36

765-17316

SELF-TAP SCREW,Oval Hd, M4.2 x 16

2шт.

37

369937A1

NET

Cargo

1шт.

38

369929A1

FASTENER

Christmas Tree

5шт.

39

371554A1

BRACKET

Door

1шт.

40

376553A1

FASTENER

Christmas Tree

3шт.

41

177269A1

SPRING NUT,M4.2

2шт.

42

80043233

SCREW

Hex, M8 x 20, 10.9

4шт.

43

384758A1

FOAM INSULATION

Barrier, Front Console

1шт.

44

384785A2

PLATE

Foam, Front Console

1шт.

45

384127A1

FOAM

Acoustical

1шт.

46

376597A2

DECAL

hole

4шт.

47

394772A1

PAD SET

Floor Protection

1шт.

48

414699A1

PLATE

Transmission Cover

1шт.

49

86639049

PLUG

Cap 1/2" Hole, Black Poly

3шт.

50

404287A1

INSERT,M6

threaded knurled open

2шт.

51

345-103

LOCTITE

593

1шт.

52

416119A1

PLATE

Controller Port

1шт.

53

325228A1

DECAL

Serial Number

1шт.

54

307026A1

SHIELD

Cable Access

1шт.
