Запчасти Case IH SPX4260 (01-002[01]) - DELUXE RADIO & SPEAKERS Cab Interior

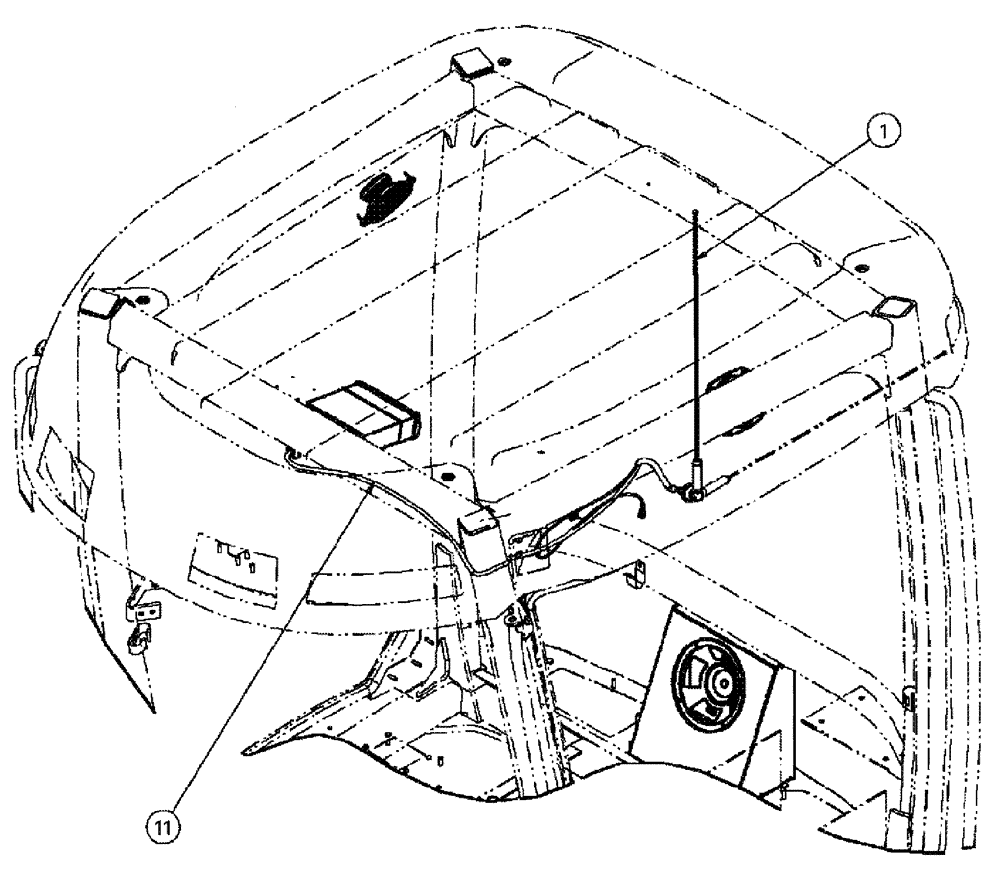

Схема запчастей Case IH SPX4260 - (01-002[01]) - DELUXE RADIO & SPEAKERS Cab Interior
11
1

Артикул

Название

Примечание

Количество

1

360215A1

ANTENNA

radio

1шт.

2

177269A1

SPRING NUT,M4.2

8шт.

3

258342A2

SPEAKER

5-1/4 Coaxial Celco

2шт.

4

1270741C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

8шт.

5

325061A2

RADIO

AM/FM/WB/Cassette/ CDX

1шт.

6

388445A1

HOUSING

Enclosure, Subwoofer

1шт.

7

388444A1

SPEAKER

Subwoofer, 8"

1шт.

8

86639120

SELF-TAP SCREW,Oval Hd, M4.2 x 19

4шт.

9

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

10

388489A1

CLIP,ELECTRICAL

Cord, 3/16 IN Adhesive Backed

1шт.

11

360432A2

HARNESS

ENT. radio antenna

1шт.

12

893-11006

LOCK WASHER,Ext Tooth, M6

1шт.

13

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

14

86639137

SELF-TAP SCREW,Hex Hd, M6.3 x 13

1шт.

Выбрано товаров: 14
