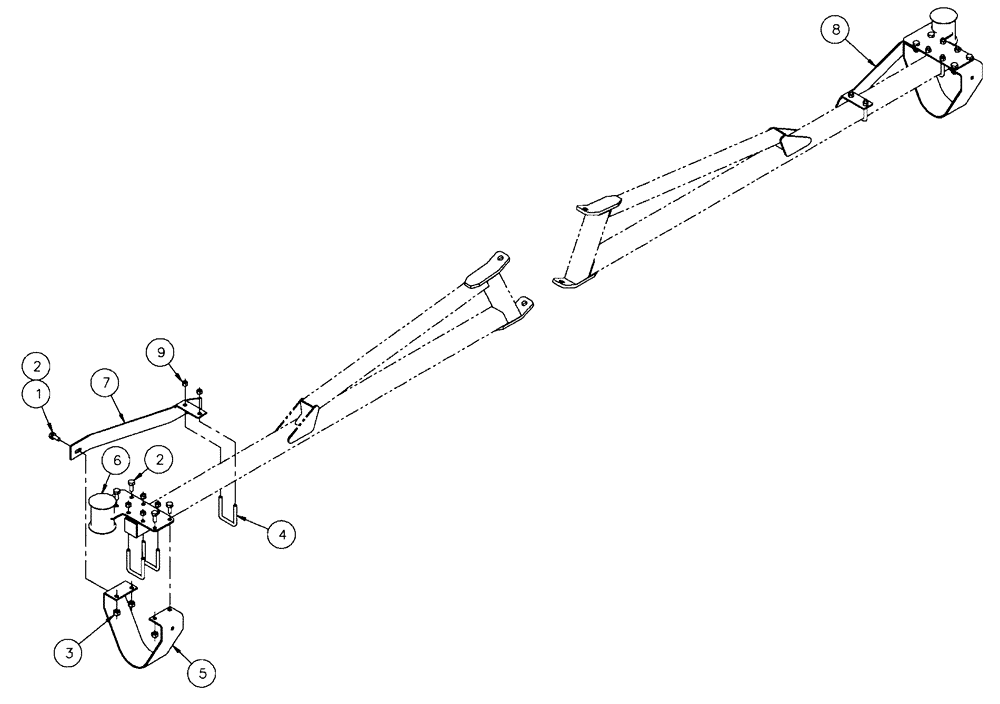

Запчасти Case IH SPX4260 (08-015) - SKID GROUP, OUTER BOOM (09) - BOOMS

1

BN300499

WASHER,M10, 10.9

2шт.

2

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

10шт.

3

100037

LOCK NUT,M10 x 1.5, Cl 8

10шт.

4

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

6шт.

5

BN313335

SKID/SHOE

Boom breakaway

2шт.

6

BN313416

MOUNTING PARTS

Outer,Foamtube

2шт.

7

BN319660

GUARD

LH Outer Boom Skid

1шт.

8

BN319662

GUARD

RH Outer Boom Skid

1шт.

9

88902

NUT,3/8"-16

12шт.
