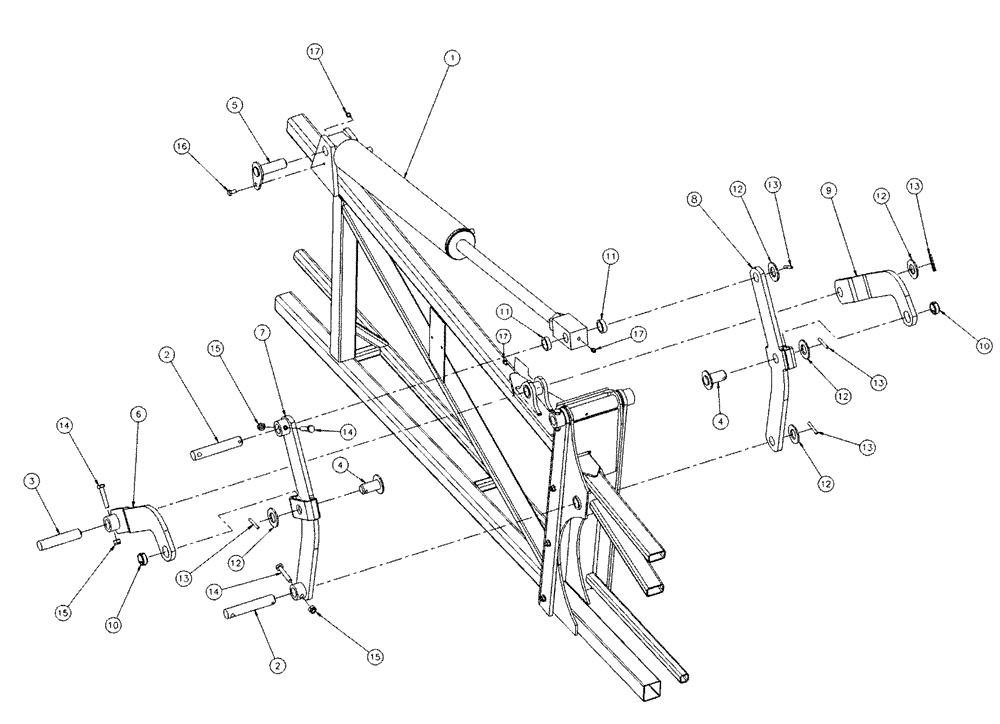

Запчасти Case IH SPX4260 (08-009) - HINGE ASSEMBLY, RH (09) - BOOMS

1

BN305034

CYLINDER ASSY.

hydraulic, 2 x 20 boom fold

1шт.

87266449R

REMAN-HYD CYLINDER

SPX4260 SPRAYER, Hydraulic, 2 x 20 boom fold, HINGE ASSEMBLY, RH (11/01-6/04), Reman for New PN BN305034

1шт.

87266449C

CORE-HYD CYLINDER

Return Number

1шт.

BN68490

SEAL KIT

For Ref 1

1шт.

2

BN307218

PIN,25.4mm OD x 143mm L

1 OD X 5.63 ETD 150

2шт.

3

BN307217

PIN,25.4mm OD x 120.65mm L

1 OD X 4.63 ETD 150

1шт.

4

BN310118

PIN

2шт.

5

BN307223

PIN,25.4mm OD x 85.85mm L

Cylinder

1шт.

6

BN305624

LINKAGE

Bar

1шт.

7

BN305623

LINKAGE

Bar

1шт.

8

BN305622

LINKAGE

Bar

1шт.

9

BN311368

LINKAGE

Formed LH

1шт.

10

BN69918

BUSHING

Spring (Connex)

2шт.

11

BN311573

SPACER,26.16mm ID x 35.05mm OD x 10.41mm L

2шт.

12

BN310130

WASHER

10GA 1.03" ID X 2.0

5шт.

13

BN52330

PIN, ROLL

1/4 X 1 3/4

5шт.

14

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

3шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

16

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

17

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

3шт.
