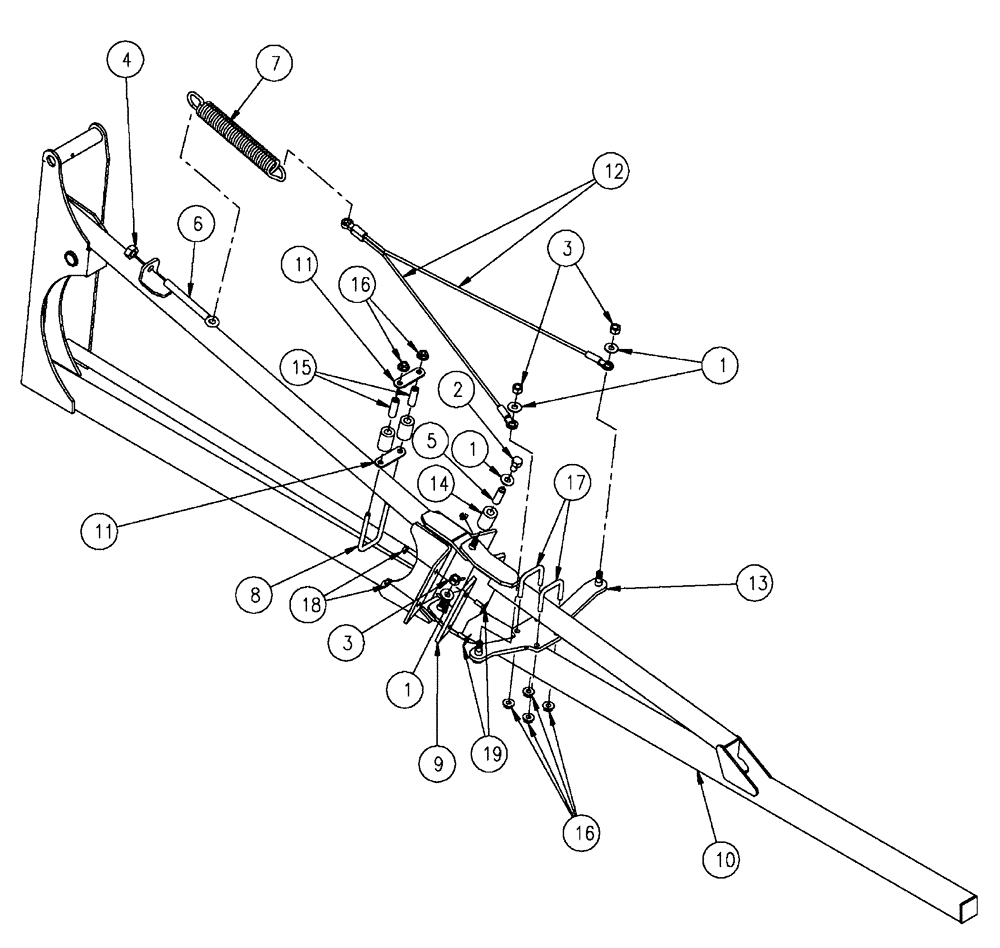

Запчасти Case IH SPX4260 (08-008) - BOOM, BREAKAWAY ASSEMBLY (09) - BOOMS

1

BN300500

WASHER,M12, 10.9

4шт.

2

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

3

100038

NUT,M12 x 1.75, Cl 8

3шт.

4

832-46416

NUT,M16 x 2, Cl 8

1шт.

5

BN304675

NUT

RND Connect M12 X 40

1шт.

6

BN304678

EYEBOLT

BOLT, EYE M16 X 160

1шт.

7

BN305410

SPRING

1.67 X 0.283 X 12

1шт.

8

BN305434

U-BOLT

BOLT "U" 3/8 x 2 x 4.5

1шт.

9

BN312172

BUMPER

Breakaway

2шт.

10

BN325289

FRAME

Boom, Breakaway

1шт.

11

BN308039

PLATE

Spacer

2шт.

12

87271165

CABLE,713mm L

Breakaway, 28"

2шт.

13

BN309505

ANGLE

Breakaway

1шт.

14

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW

3шт.

15

BN310055

BUSHING,9.78mm ID x 16mm OD x 49.28mm L

Bushing

2шт.

16

BN50062

LOCK NUT,3/8"-16, Stainless Steel

6шт.

17

BN68062

U-BOLT

BOLT "U" 3/8 SQ. BND-2.06 ID

2шт.

18

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

19

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.
