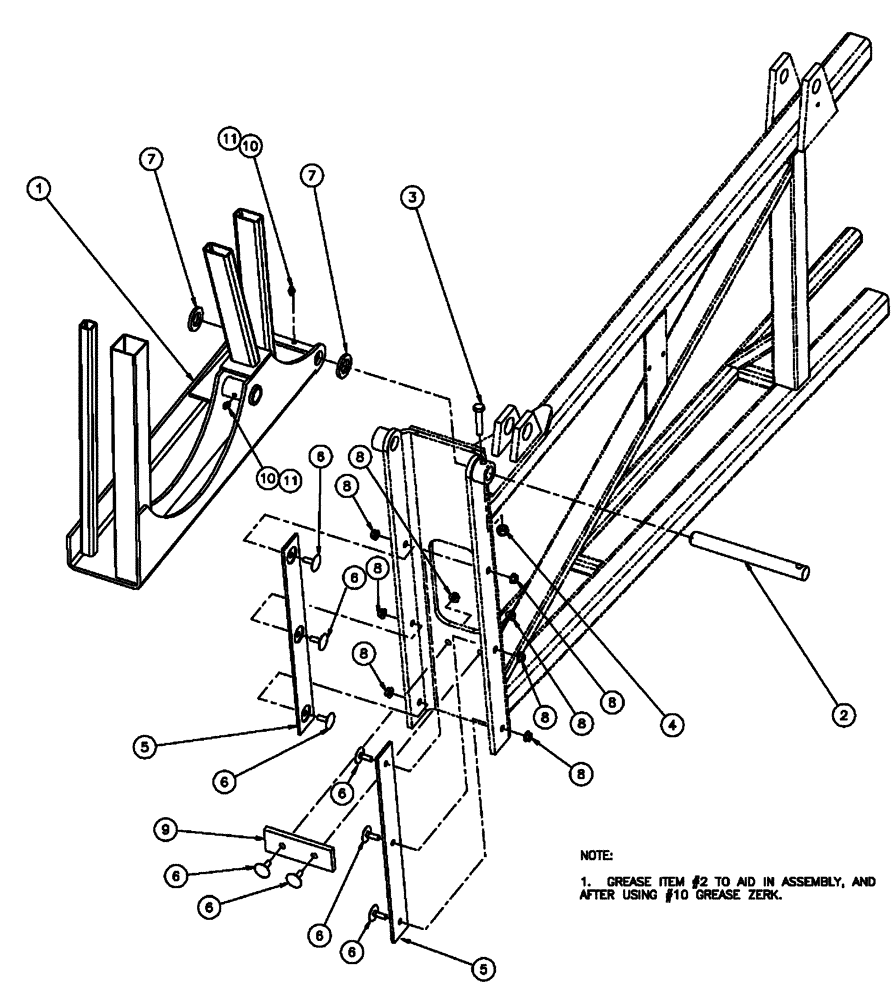

Запчасти Case IH SPX4260 (08-007) - BOOM, OUTER ASSEMBLY, LH (09) - BOOMS

1

BN320281

BOOM

LH Outer, 80'

1шт.

2

BN307893

PIN,25.4mm OD x 236.47mm L

V-Fold

1шт.

3

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

5

BN69856

PLATE

Liner-Plastic 3/16 X 2 X 17.50

2шт.

6

BN50014

BOLT

5/16"-18 x .75, EH

8шт.

7

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

8

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

8шт.

9

BN305437

BUMPER

Rubber 2 X 6 X .63

1шт.

10

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

11

BN55015

NIPPLE, LUBE

NIPPLE lithium, 12-grade Ref. #2

1шт.
