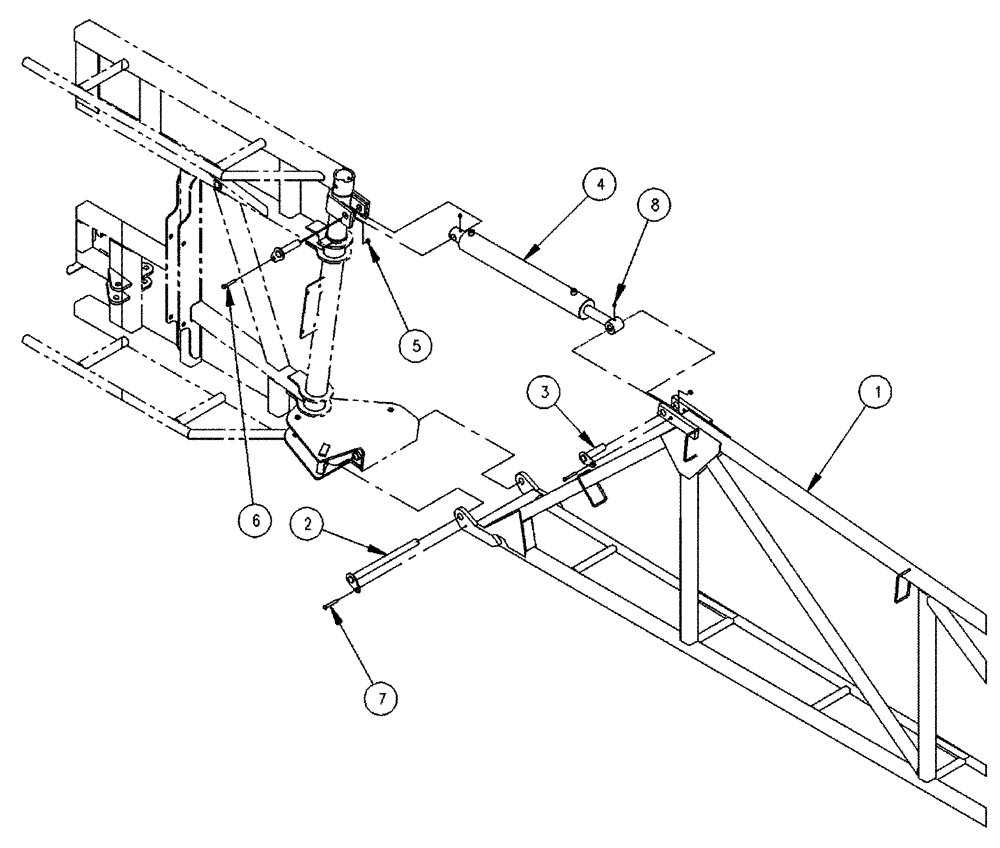

Запчасти Case IH SPX4260 (08-004) - WING ASSEMBLY 60 (09) - BOOMS

0

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

0

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

0

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

1

BN305627

FRAME

Inner section RH, Used Prior To 09/01/2001

1шт.

1

BN326099

FRAME

Inner section RH, Used 09/01/2001 and After

1шт.

1a

BN305630

FRAME

Inner Section LH, Used Prior To 09/01/2001

1шт.

Similar Part Inner Section RH, P/N. BN305627 But Opposite Side

1шт.

1a

BN326077

FRAME

Inner Section LH, Used 09/01/2001 and After

1шт.

Similar Part Inner Section RH, P/N. BN326099 But Opposite Side

1шт.

2

BN306670

PIN,25.4mm OD x 368.3mm L

Used Prior To 09/01/2001

1шт.

2

BN326079

PIN,38.1mm OD x 408.94mm L

Used 09/01/2001 and After

1шт.

3

BN305621

PIN

2шт.

4

BN322581

HYDRAULIC CYLINDER

3.00 X 21 X1.50

1шт.

See Fig. 07-003

1шт.

4

87266461R

REMAN-HYD CYLINDER

SPX4260 SPRAYER (11/01-6/04), Reman for New PN BN322581

1шт.

4

87266461C

CORE-HYD CYLINDER

Return Number

1шт.

8

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.

9

BN55015

NIPPLE, LUBE

NIPPLE lithium, 12-grade Ref. #2

1шт.
