(08-002) - INNER LOWER PIVOT ASSEMBLY

Запчасти Case IH SPX4260 (08-002) - INNER LOWER PIVOT ASSEMBLY (09) - BOOMS

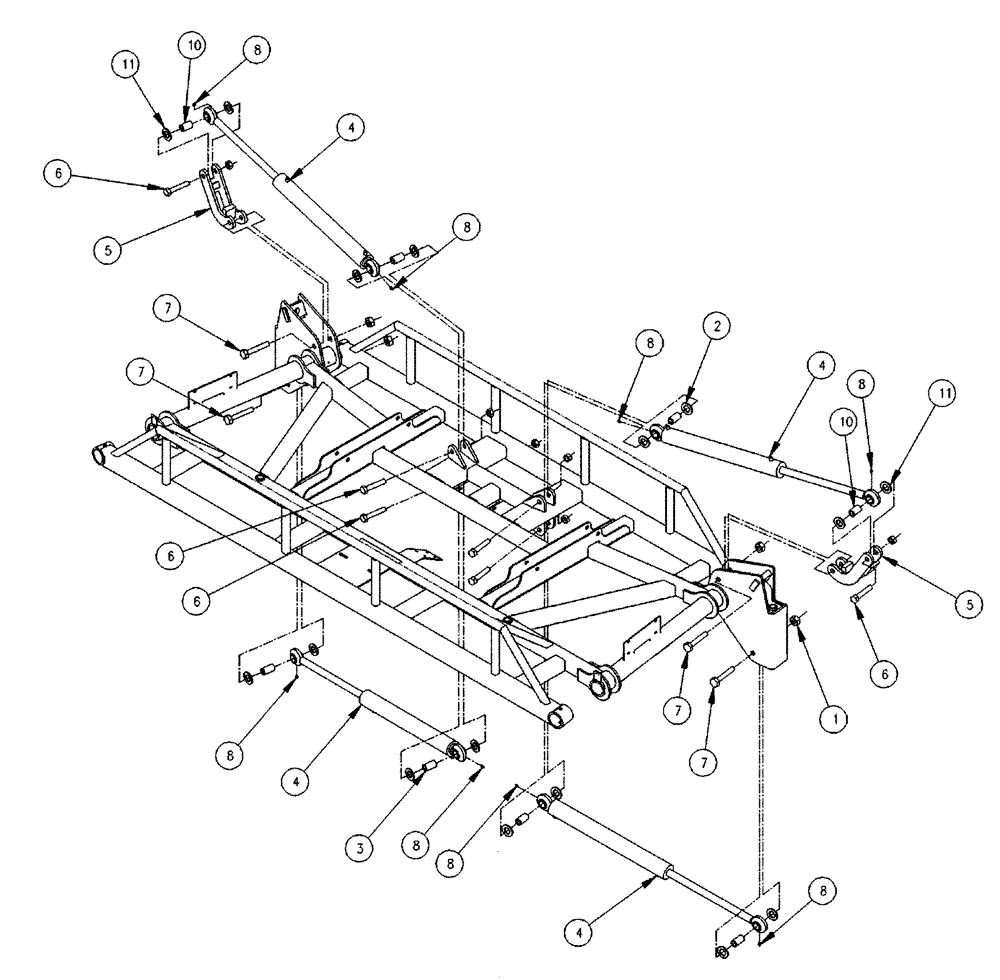

Схема запчастей Case IH SPX4260 - (08-002) - INNER LOWER PIVOT ASSEMBLY (09) - BOOMS
8
4
11
8
4
7
8
6
1
10
11
8
6
8
4
3
5
8
6
2
8
10
7
4
5
6
8
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

380424

NUT,M20 x 2.5, Cl 8

10шт.

2

87016611

WASHER,32.8mm ID x 56.5mm OD x 5mm Thk

12шт.

3

BN309295

BUSHING

2.215 LG X 1.25 OD

6шт.

4

BN322063

HYDRAULIC CYLINDER,Double Acting, 34.92mm Rod, 549.27mm Stroke

2.50 X 21.62 X 1.38

4шт.

See Fig. 07-004

1шт.

4

BN322063R

REMAN-HYD CYLINDER

SPX4260 SPRAYER (11/01-6/04)

4шт.

4

BN322063C

CORE-HYD CYLINDER

Return Number

4шт.

5

BN321065

ARM

2шт.

6

BN310279

BOLT

M20 X 108 Shank, Cutoff

6шт.

7

BN310280

BOLT

M20 X 125 Shank, Cutoff

4шт.

8

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

8шт.

9

BN55015

NIPPLE, LUBE

NIPPLE lithium, 12-grade Ref. #2

1шт.

10

BN310896

BUSHING,20.24mm ID x 31.75mm OD x 51.56mm L

2.03 LG X 1.25 OD

2шт.

11

95-81139

WASHER,1.31" ID x 2" OD x 0.11" Thk

4шт.
