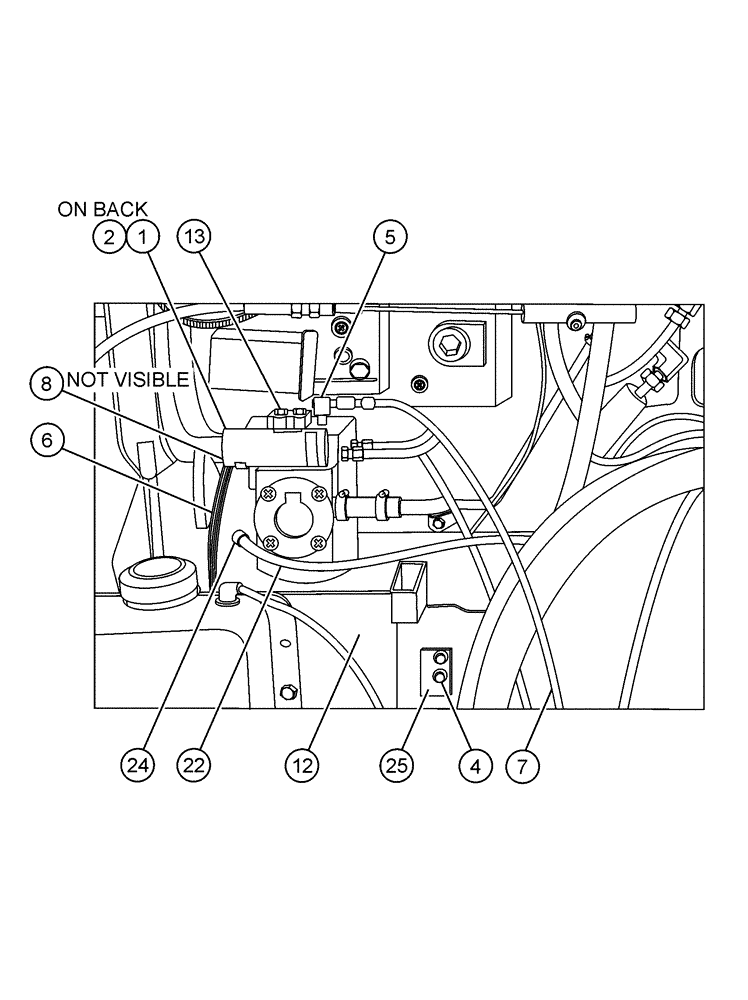

Запчасти Case IH SPX4260 (03-039[01]) - COMPRESSOR ASSEMBLY (01) - ENGINE

1

BN2290733

GOVERNOR

Air, 275491

1шт.

2

BN2293227

BREATHER

301370 1/8" NPT

1шт.

3

BN2295247

CHECK VALVE

Air #5003980

1шт.

4

BN300497

WASHER,M8, 10.9

2шт.

5

BN312106

FITTING

2024-2-6

1шт.

6

BN318154

HOSE ASSY.

10 X 72"

1шт.

7

BN318155

HOSE ASSY.

6 X 72"

1шт.

8

BN318668

FITTING

8Mp-10Mj 90

1шт.

10

BN319011

FITTING

GNPT-12M-8F 90 Degree

1шт.

11

BN319013

FITTING

mp-8, Mjic-10 STR

1шт.

12

BN3558051

COMPRESSOR

Holset, 15 CFM

1шт.

13

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

14

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

15

J008465

PLUG

1/8 npt, int hex, seal

1шт.

16

J035806

WASHER

2шт.

17

J68139

ELBOW

Male Adapter

2шт.

For Mounting Compressor To Engine

1шт.

18

J900634

FLANGE BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

2шт.

For Mounting Compressor To Engine

1шт.

19

J902692

NUT

2шт.

For Mounting Compressor To Engine

1шт.

20

854-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

4шт.

For Mounting Compressor To Engine

1шт.

21

J905371

STUD

2шт.

22

J906747

HOSE,6.35mm ID x 508mm L

Flexible

1шт.

23

J926822

SPACER

Mounting

1шт.

24

J927736

ELBOW

Plain Street Pipe

1шт.

25

J930403

BRACE

Air Compressor

1шт.

26

J913287

GASKET,1.05mm Thk

Hydraulic Pump

1шт.
