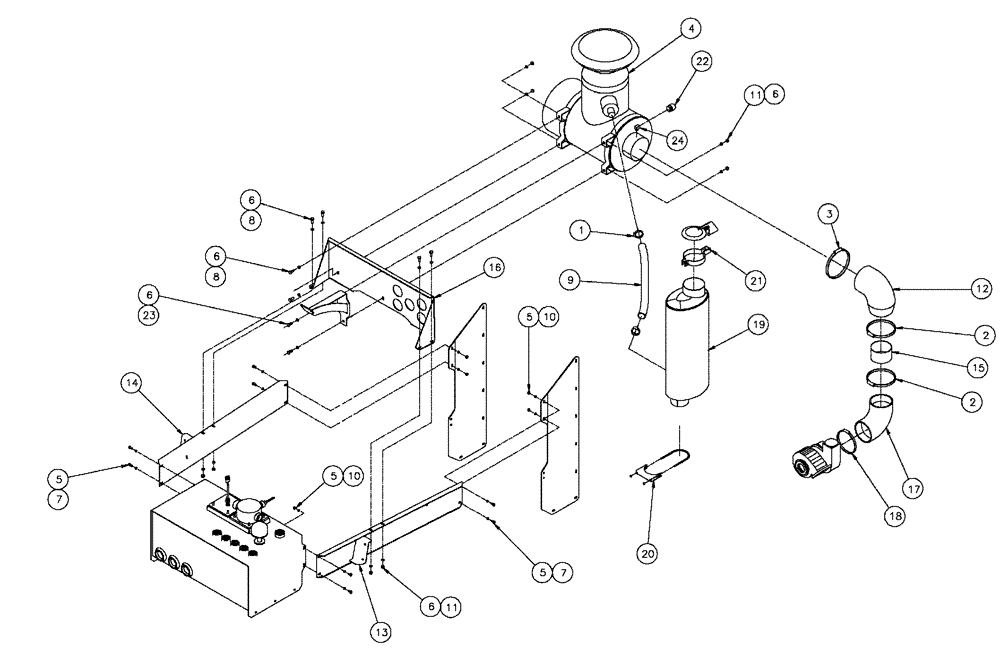

Запчасти Case IH SPX4260 (03-034) - INTAKE EXHAUST GROUP (01) - ENGINE

1

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

2

BN2390361

SPECIAL CLAMP

T-Bolt Band 5.5"

2шт.

3

BN2390362

SPECIAL CLAMP

T-Bolt Band 6.5"

1шт.

4

BN310649

PACKAGE

Filter, Aircleaner Assembly

1шт.

See Fig. 03-042

1шт.

5

BN300497

WASHER,M8, 10.9

8шт.

6

BN300499

WASHER,M10, 10.9

16шт.

7

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

8

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

9

BN323705

HOSE,1.50" ID x 30.00"

1шт.

10

86528579

NUT,M8 x 1.25

8шт.

11

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

12

BN305658

ELBOW

Reducer 6" X 5" X 90

1шт.

13

BN310247

MOUNTING PARTS

Air Cleaner, RH

1шт.

14

BN310246

MOUNTING PARTS

Air Cleaner, LH

1шт.

15

BN318699

TUBE

1шт.

16

BN310282

MOUNTING PARTS

Pre-Cleaner

1шт.

17

BN306335

ELBOW

90°, 5 x 4

1шт.

18

BN69643

CLAMP

T-Bolt 4.50 Long Bolt

1шт.

19

87581011

MUFFLER

Exhaust

1шт.

20

BN25927

CLAMP,104.8mm ID

4" Muffler

1шт.

21

BN7146489

CAP

Rain Cap, Exhaust, 5

1шт.

22

BN66126

INDICATOR

Filter, Electric

1шт.

23

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

24

BN21894

ELBOW

90º 1/8" Pipe

1шт.
