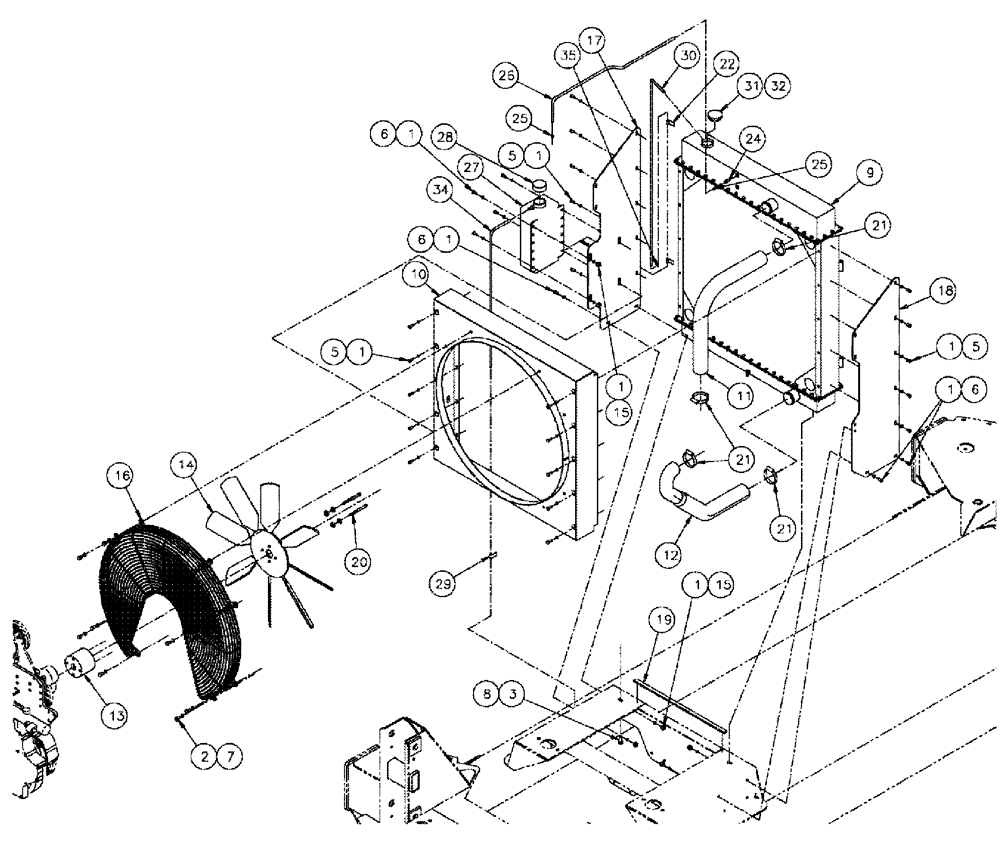

Запчасти Case IH SPX4260 (03-033) - RADIATOR FAN GROUP (01) - ENGINE

1

BN300497

WASHER,M8, 10.9

34шт.

2

BN300499

WASHER,M10, 10.9

12шт.

3

BN300500

WASHER,M12, 10.9

2шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

7

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

8шт.

8

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

9

BN310322

RADIATOR

778-CDC Engine

1шт.

10

BN310233

SHIELD

Radiator Schroud, Weldment

1шт.

11

BN310357

RADIATOR HOSE,2.25" ID x 17.67", SAE 20R4

Upper

1шт.

12

BN310356

RADIATOR HOSE,2.38" ID, 2.50" ID x 18.05", SAE 20R4

Lower

1шт.

13

A184548

SPACER,Fan, 89/90mm Thk

Fan, 90 mm

1шт.

14

BN310251

FAN

32" DIA.

1шт.

15

86528579

NUT,M8 x 1.25

6шт.

16

BN304525

GUARD

Finger - Fan

1шт.

17

BN312991

SUPPORT

Radiator, LH

1шт.

18

BN310243

SUPPORT

Radiator, RH

1шт.

19

BN309400

FOAM

Weather Strip

1шт.

20

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

4шт.

21

J918521

HOSE CLAMP,59mm - 83mm

Radiator (59-83MM)

4шт.

22

BN65181

RETAINER

Radiator Drain Hose

2шт.

24

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

25

BN76094

HOSE CLAMP

SS #M4

2шт.

26

BN311051

HOSE,0.38" ID x 36.00", SAE 30R6, SAE 30R7

Fuel

2шт.

27

90-7717T2

RESERVOIR

Tank, Coolant Recovery

1шт.

28

1547924C1

CAP

coolant recovery bottle

1шт.

29

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

30

BN313031

HOSE,0.31" ID x 51.50"

1шт.

31

BN313037

CAP

Radiator Cap, 15 PSI

1шт.

34

BN315971

HOSE,0.31" ID x 40.00"

1шт.

35

BN2290745

GROMMET

2864 (5/8" Hole)

1шт.
