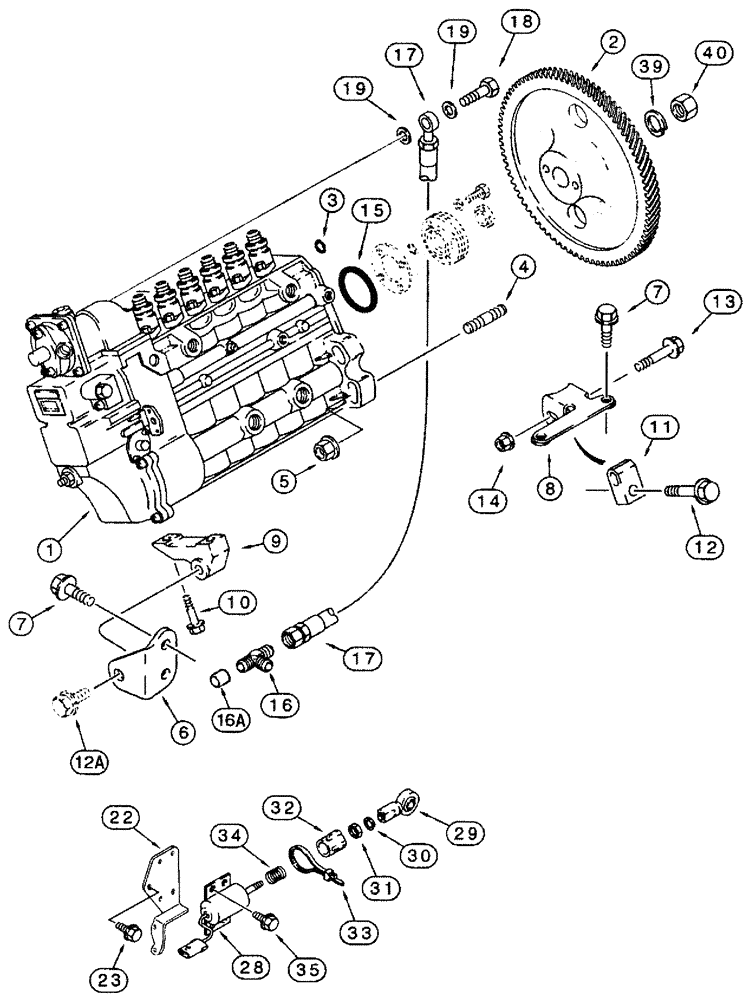

Запчасти Case IH SPX4260 (03-028) - FUEL INJECTION PUMP AND DRIVE (01) - ENGINE

0

JC926886

CORE-INJECTION PUMP

Return Number - Use This Part Number To Return Pump Core For Credit When Using A Remanufactured Assembly

1шт.

1

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION New

1шт.

1

JR926776

REMAN-INJECTION PUMP

Pump Assembly - Fuel Injection, Remanufactured, Component Parts Shown On This Page Do Not Apply To The Remanufactured Assembly

1шт.

1

JC926776

CORE-INJECTION PUMP

Return No, INJECTION PUMP

1шт.

Component Parts Not Serviced Separately

1шт.

2

J931380

GEAR

Fuel Pump

1шт.

3

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Ring - Quad, Fuel Injection Pump

1шт.

4

J915036

STUD

Pump Mounting

4шт.

5

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

6

J930841

SUPPORT

Injection Pump

1шт.

Injection pump to cylinder block

1шт.

7

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

4шт.

8

J930382

HOLDER

Bracket - Fuel Pump

1шт.

9

J926273

SUPPORT

injection pump, lower

1шт.

10

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

2шт.

11

J930383

SUPPORT

Bracket To Fuel Pump

1шт.

12

9804263

BOLT,M10 x 49.2mm, Cl 8.8

1шт.

12a

J920622

FLANGE BOLT,Hex, M10 x 30mm, Cl 10.9

1шт.

13

87015866

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

14

J900589

NUT

Hex Flange, Special, 8 MM

1шт.

15

J924605

SEAL

"D" shaped ring

1шт.

Injection pump to gear housing

1шт.

16

J924346

TEE

7/16-20 Flare X 1/8 Inch Pt

1шт.

16a

86511869

CAP,7/16" - 20 JIC

1шт.

17

J924053

FUEL HOSE,370.00 mm

1шт.

18

J918002

BANJO BOLT

Screw

1шт.

19

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

Special, 10 X 15.5 X 1 MM

2шт.

22

J930252

SUPPORT

Bracket - Solenoid Mounting

1шт.

23

J924962

FLANGE BOLT

Heavy Hex Flange, 8-1.5X16 MM, Class 10.9

1шт.

28

J930235

SOLENOID

Fuel Shutoff, 12 Volt

1шт.

29

L53928

BALL JOINT

Joint-Ball, 1/4 Inch Nf

1шт.

30

80682

LOCK WASHER,1/4"

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

32

J925171

BOOT

Protective, Plunger

1шт.

33

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

34

J924407

SPRING

Return, Plunger

1шт.

35

97010C1

BOLT,Hex, M6 x 12mm, Cl 8.8

Hex flange, 6 - 1.0 x 12 mm

4шт.
