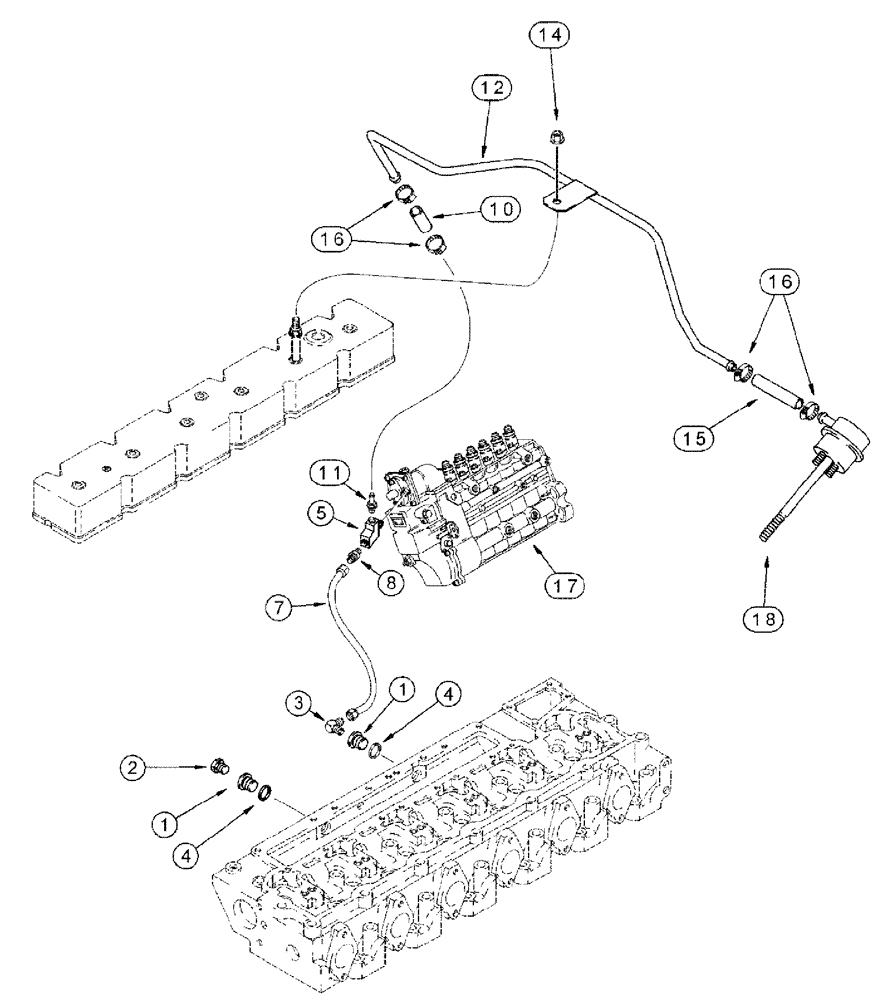

Запчасти Case IH SPX4260 (03-026) - ANEROID AND WASTEGATE SYSTEM (01) - ENGINE

1

J921594

PLUG

Threaded

2шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

3

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

4

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, Plug, Plug To Cylinder Head

2шт.

5

J930789

TEE

1/8 x 1/8 x 1/8 pipe

1шт.

7

J934608

TUBE,6.35 mm OD x 220 mm L

Aneroid, Nylon

1шт.

8

222-21

FITTING,7/16"-24 x 1/8" NPTF

1шт.

10

J920871

HOSE,1294.00 mm

1 MM(2 Inch) Long

1шт.

11

86637719

FITTING,90 Degree, 1/4" Hose x 1/8" NPTF, Barbed

1шт.

12

J929748

TUBE,6.35 mm OD x 577 mm L

Wastegate

1шт.

14

J900589

NUT

Hex Flange, Special, 8 MM

1шт.

15

J920199

HOSE,385.00 mm

1шт.

16

82039341

CLAMP,12mm - 22mm

#4, 0.25/0.62 Type M Worm

4шт.

17

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION Assembly, New

1шт.

Component Parts Not Serviced Separately

1шт.

18

J593678

ACTUATOR

Turbo Wastegate

1шт.
