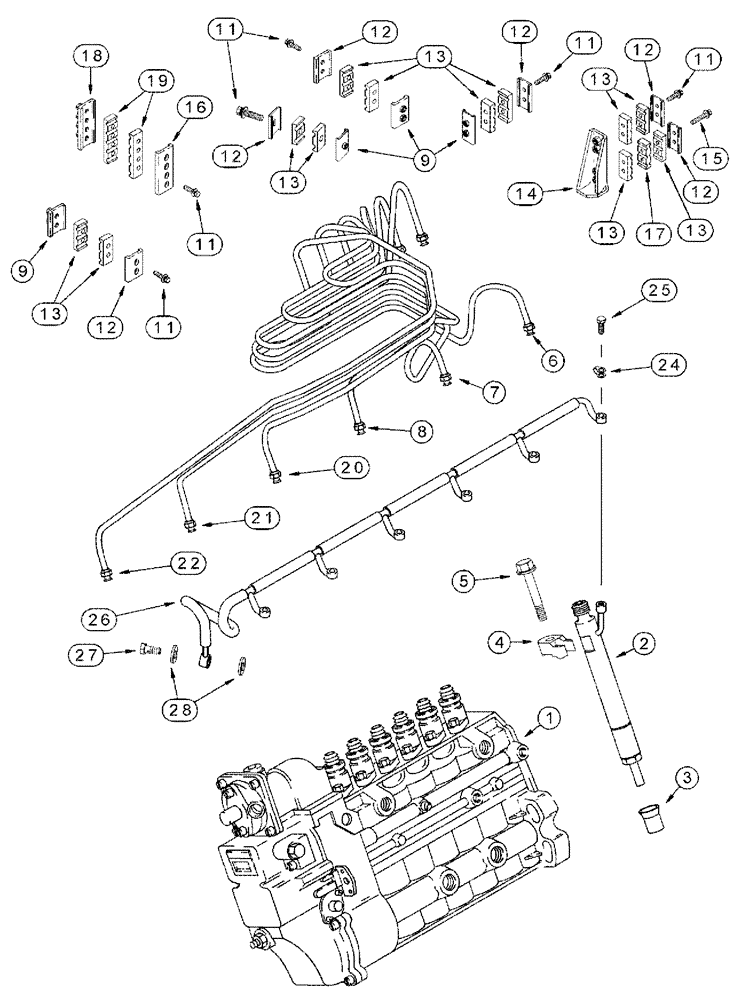

Запчасти Case IH SPX4260 (03-025) - FUEL INJECTION SYSTEM (01) - ENGINE

1

J926776

PUMP, FUEL INJECTION

PUMP, INJECTION Assembly, New

1шт.

Component Parts Not Serviced Separately, See Fig. 03-028 For Mounting Parts

1шт.

2

J926787

INJECTOR ASSY.

Fuel

6шт.

Parts List See Fig. 03-029

1шт.

2

JR926787

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

2

JC926787

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Sleeve - Injector, Sealing

6шт.

4

J910279

CLAMP

Fuel Injector

6шт.

5

J922018

FLANGE BOLT

Bolt - Heavy Hex Flange, 8 - 1.25 X 80 MM, Class 12.9

6шт.

6

J929801

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

Fuel Injector, No. 1 Cylinder

1шт.

7

J929802

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

Fuel Injector, No. 2 Cylinder

1шт.

8

J929803

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

Fuel Injector, No. 3 Cylinder

1шт.

9

J917716

BRACE

Bracket - Fuel Tube, Supply

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

10шт.

12

J904519

SUPPORT

Brace - Tube Retaining

6шт.

13

J917747

CLAMP

Fuel Tube

12шт.

14

J917776

BRACE

Fuel Tube

1шт.

15

J920855

CAPTIVE WASHER SCREW

M5 x 35

2шт.

16

J910686

BRACE

Tube Retaining

1шт.

17

J917748

CLAMP

Fuel Tube

1шт.

18

J917740

BRACE

Tube Retaining

1шт.

19

J917749

CLAMP

Tube

2шт.

20

J929804

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

Fuel Injector, No. 4 Cylinder

1шт.

21

J929805

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

Fuel Injector, No. 5 Cylinder

1шт.

22

J929806

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 911.5 mm L

Fuel Injector, No. 6 Cylinder

1шт.

24

J903380

SEAL

Banjo connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

26

J920595

TUBE ASSY.

Manifold - Fuel Drain

1шт.

27

J924726

BANJO BOLT

Valve - Check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.
