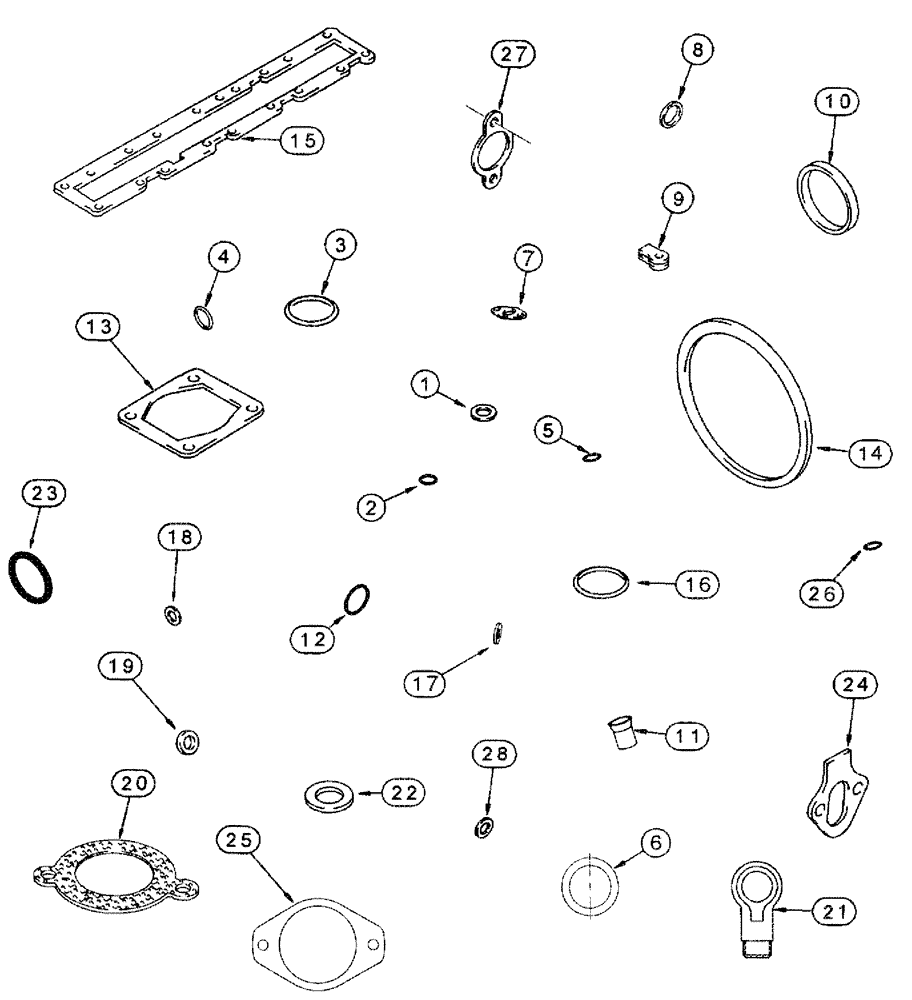

Запчасти Case IH SPX4260 (03-024) - BASIC ENGINE GASKET KIT (01) - ENGINE

0

A77991

GASKET KIT

Basic Engine

1шт.

1

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

3

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

4

14457880

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

5

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

6

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

7

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

8

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Sealing, 22 MM I.D.

2шт.

9

J903380

SEAL

Banjo connector

6шт.

10

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Rectangular Ring

1шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

Sleeve - Injector

6шт.

12

J910517

O-RING

Seal

1шт.

13

J911941

GASKET

Turbocharger MTG.

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Rear Seal Cover

1шт.

15

J914311

MANIFOLD GASKET

Intake Manifold Cover

1шт.

16

J916284

O-RING

fuel injection pump

1шт.

17

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

18

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 MM I.D.

2шт.

19

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

Washer - Sealing, M14

4шт.

20

J918779

GASKET,1.19mm Thk

water outlet connection

1шт.

21

J919644

FITTING

Connector - Banjo

2шт.

22

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

Seal, INJ. Tip, 2.5 MM

6шт.

23

J924605

SEAL

"D" shaped ring

1шт.

24

J931059

GASKET

Lift Pump

1шт.

25

144169C2

GASKET,0.79mm Thk

HYD. Pump

1шт.

26

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

27

J932063

MANIFOLD GASKET,1.78mm Thk

Exhaust

6шт.

28

J935171

SEALING WASHER

12 MM

2шт.
